BC CH 4300, 400 V
Prod. No. 574209
Product details
COOK Ceran hob with two independently adjustable round cookingzones
Cooking zones: Ø 220 mm and Ø 170 mm
Exterior dimensions: 620x400x240 mm
Output/connected load: 400V 3N PE 16A 50-60Hz 4,3kW
Specs
Usable area width 339 Millimeter
Usable area length 564 Millimeter
Exterior dimension height 240 Millimeter
Electrical Yes
Supports/ledges No
Exterior dimensions depth 400 Millimeter
Exterior dimensions width 620 Millimeter
Weight 12 Kilogram
Material Stainless steel
Product group COOK
Documents
Use & Operating Manuals (2)
Brochures (12)
Tender specifications (4)
Customer Information Drawings (3)
Download revision documents
 without prices
Bottom lid 400 cpl. 121652
Bottom lid 400 cpl.
(valid from 09/26/2016)
 1 Each
Gauge foot M10x30 black 121612
Gauge foot M10x30 black
(valid from 06/18/2015)
 4 Each

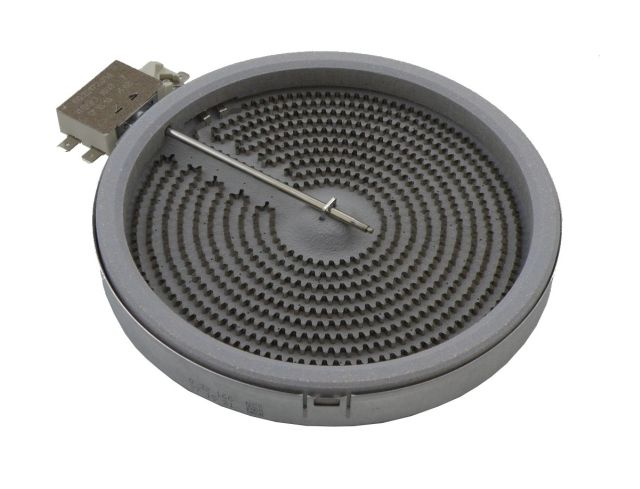

heating element 230V 1800W HiLight 121562
heating element 230V 1800W HiLight
(valid from 06/18/2015)
 1 Each

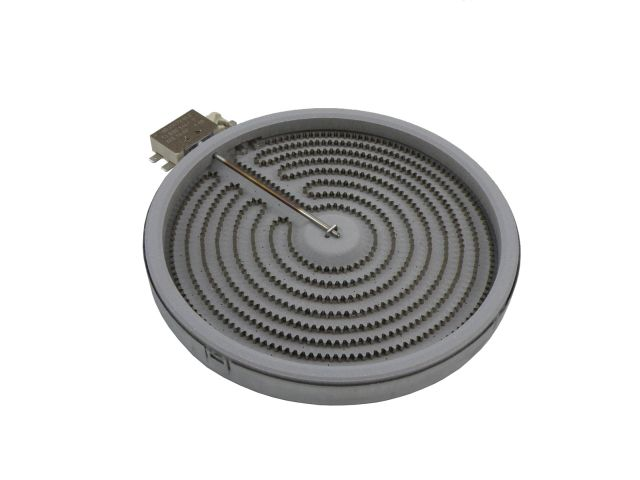

heating element 230V 2500W HiLight 121564
heating element 230V 2500W HiLight
(valid from 06/18/2015)
 1 Each
Control knob black notch on top 121556
Control knob black notch on top
(valid from 06/18/2015)
 2 Each
Signal lamp green 230VAC 121577
Signal lamp green 230VAC
(valid from 06/18/2015)
 2 Each
V-ring V 6 S 6401 121613
V-ring V 6 S 6401
(valid from 06/18/2015)
 2 Each

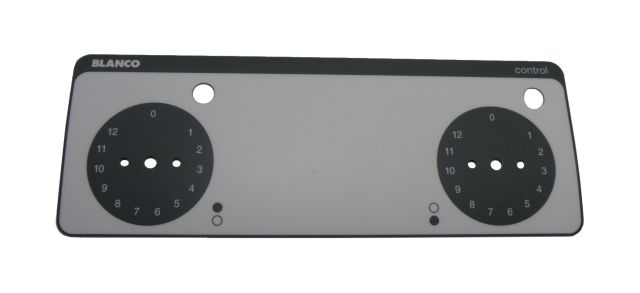

Self-adhessive control panel 2Z CH 121547
Self-adhessive control panel 2Z CH
(valid from 06/18/2015)
 1 Each
Terminal block 400V/40A 121590
Terminal block 400V/40A
(valid from 06/18/2015)
 1 Each
strain relief for connection cable 121616
strain relief for connection cable
(valid from 06/18/2015)
 1 Each
Power supply cable 5x1,5 cpl. with plug 121588
Power supply cable 5x1,5 cpl. with plug
(valid from 06/18/2015)
 1 Each
