TTW 30 GN

Prod. No. 374099

Product details

Tray transport trolley
3 compartments
Capacity: 30 Gastronorm trays
insertion: lengthwise
Space between ledges: 115 mm
Illustration similar

Added to Your Shopping Cart

Specs

Insert	Lengthwise
Hygiene type	HS
Heating/cooling technology	passive cooling
Material	Stainless steel
Product group	Tray transport trolleys
Total max. load	240 Kilogram

Documents

Use & Operating Manuals (5)

Spareparts

without prices

Image	Name	Quantity in device
Image	Code	373392	Name	Castor wheel with brake LE-VPP160R-FI-SG (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373391	Name	Castor wheel LE-VPP 160R-SG (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373398	Name	Swivel castor LEX-POEV 160XR-SG-FI-84462 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373397	Name	Swivel castor LEX-POEV 160XR-SG-844624 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373393	Name	FIXED WHEEL B-VPP 160R-SG (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373399	Name	WHEEL, FIXED-BX-POEV 160XR-SG-844626 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373395	Name	CASTER WHEEL LE-VPP 200R-FI-SG (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373394	Name	CASTER WHEEL LE-VPP 200R-SG (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373396	Name	FIXED WHEEL B-VPP 200R-SG- 763618 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373400	Name	WHEEL, CASTER-LEX-POEV 200XR-SG-844628 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373401	Name	WHEEL, CASTER LEX-POEV 200XR-SG-844629 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	373402	Name	Fixed castor BX-POEV 200XR-SG-844630 (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	350524	Name	Brake bracket EN/GN, compl. (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	83144	Name	WASHER,BACKING A 8,4DIN 9021 1.4301 (valid from 09/22/2015)	Quantity in device	16 Each
Image	Code	81098	Name	Hexagon screw ISO 4017-M8x25 (valid from 09/22/2015)	Quantity in device	16 Each
Image	Code	372911	Name	body for push handle holder (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	350519	Name	Tube D28x1-489 Form A (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	372912	Name	Cover push handle holder right, logo (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	372913	Name	Cover push handle holder left, logo (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350498	Name	Corpus hinge right cpl., passivated (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350496	Name	Corpus hinge left cpl.,passivated (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	373056	Name	Corner bumper bottom part (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	372932	Name	Corner bumper both sides open (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	372933	Name	Bumper corner open on one side left (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	372934	Name	Bumper corner open on one side right (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	284994	Name	Bracket f. Jerk, side, EN, GN (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	284986	Name	Shock profile 2x20 °, side, EN, GN (valid from 09/22/2015)	Quantity in device	1 Each

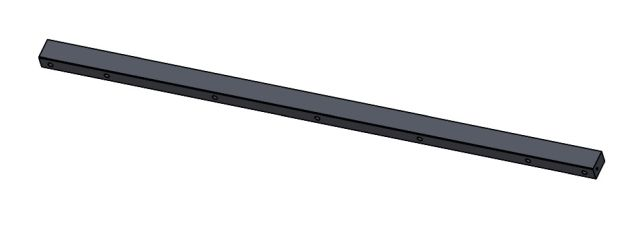

Image	Code	291366	Name	Longitudinal bumper, 3F-GN (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	359362	Name	Plug, black (valid from 09/22/2015)	Quantity in device	7 Each
Image	Code	359327	Name	Insert for impact bar (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	291372	Name	Rear bumper bar, EN / GN (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	83031	Name	washer A 8.4 DIN 125 brass (valid from 09/22/2015)	Quantity in device	12 Each
Image	Code	284979	Name	door lock 2074-U111-IA (valid from 09/22/2015)	Quantity in device	3 Each
Image	Code	127767	Name	block 3.30.0500.20 (valid from 01/31/2023)	Quantity in device	1 Each
Image	Code	127791	Name	plastic cap for handle (valid from 01/31/2023)	Quantity in device	1 Each
Image	Code	127792	Name	Plug for handle, black (valid from 01/31/2023)	Quantity in device	2 Each
Image	Code	284978	Name	handle, not lockable grey (RAL7043) (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	373438	Name	Handle, not lockable (valid from 01/31/2023)	Quantity in device	1 Each
Image	Code	291311	Name	door seal TTW-Relaunch (valid from 09/22/2015)	Quantity in device	3.269 Meter
Image	Code	284998	Name	Plastic locking (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350637	Name	(valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350513	Name	Holder, complete (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	291511	Name	Bolt D8 M5 (valid from 09/22/2015)	Quantity in device	8 Each
Image	Code	350518	Name	Pan with holder, polished (valid from 09/22/2015)	Quantity in device	2 Each
Image	Code	350629	Name	(valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350621	Name	(valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	350501	Name	Corpus hinge middle cpl., passivated (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	355603	Name	Stop (valid from 09/22/2015)	Quantity in device	3 Each
Image	Code	147251	Name	SPRING,PRESSURE- VD 162 (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	284953	Name	Stopper (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	70914	Name	Allen screw ISO 7380 M5x8 A2 m. Fl. (valid from 09/22/2015)	Quantity in device	6 Each
Image	Code	291568	Name	Locking pin POM C black (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	291534	Name	Mushroom handle w.thread M5, I.150/25 M5 (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	291567	Name	Pressure spring D11x1-26 (valid from 09/22/2015)	Quantity in device	1 Each
Image	Code	127765	Name	Grounding strap (valid from 09/22/2015)	Quantity in device	1 Each
