BC IH 2Z 5000, 400 V
Prod. No. 574199
Product details
COOK induction hob with two independently adjustable roundcooking zonesCooking zones: Ø 220 mm each
Exterior dimensions: 620x400x240 mm
Output/connected load: 400V 3N PE 16A 50-60Hz 2x 2.5kW (5.0kW)
Added to Your Shopping Cart
| Number of cooking zones | 2 |
| Usable area width | 339 Millimeter |
| Usable area length | 564 Millimeter |
| Cooking zone dia. | 220 Millimeter |
| Exterior dimension height | 240 Millimeter |
| Electrical | Yes |
| Supports/ledges | No |
| Exterior dimensions depth | 400 Millimeter |
| Exterior dimensions width | 620 Millimeter |
| Weight | 27 Kilogram |
| Material | Stainless steel |
| Product group | COOK |
Use & Operating Manuals (2)
Declarations of Conformity (2)
Brochures (12)
Customer Information Drawings (3)
|
134028 |

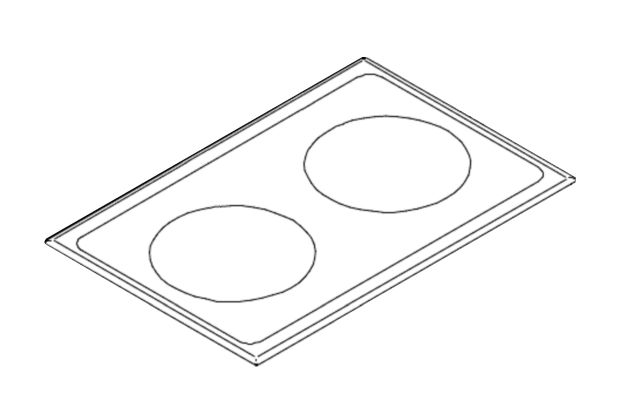

Cover sheet 400 compl. 2 zones
(valid from 05/14/2019)
|
1 Each | |
|
121612 |
Gauge foot M10x30 black
(valid from 06/18/2015)
|
4 Each | |
|
121581 |
Air filter 220x190x9 aluminium
(valid from 06/18/2015)
|
1 Each | |
|
121578 |
Signal lamp green 24VDC
(valid from 06/18/2015)
|
2 Each | |
|
121556 |
Control knob black notch on top
(valid from 06/18/2015)
|
2 Each | |
|
121613 |
V-ring V 6 S 6401
(valid from 06/18/2015)
|
2 Each | |
|
121548 |

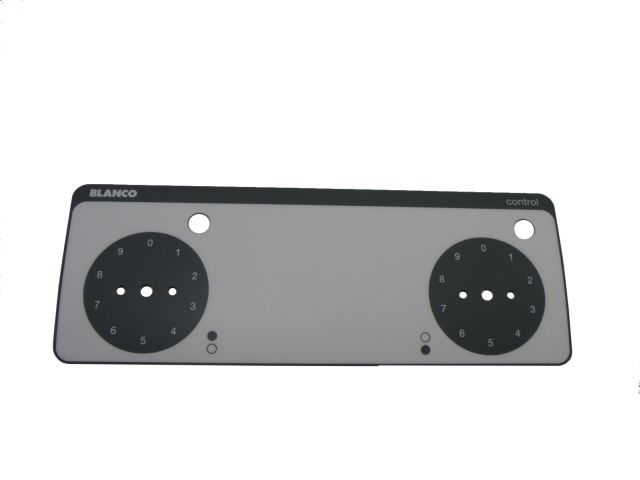

Self-adhessive control panel IH 2Z
(valid from 06/18/2015)
|
1 Each | |
|
121616 |
strain relief for connection cable
(valid from 06/18/2015)
|
1 Each | |
|
121546 |
Operating element induct. Quad Atics
(valid from 06/18/2015)
|
2 Each |
