BC PC 4800, 400 V
Sample images
BC PC 4800, 400 V
Prod. No. 574210
Product details
COOK pasta cooker
suitable for stainless steel GN cooking inserts or pasta basket insert
Capacity: max. 1x GN 1/1-150
Exterior dimensions: 620x400x240 mm
Output/connected load: 400V 3N PE 16A 50-60Hz 4,8kW
Specs
Capacity to 20 Liter
Usable area width 304 Millimeter
Usable area length 509 Millimeter
Exterior dimension height 240 Millimeter
Electrical Yes
Supports/ledges No
Exterior dimensions depth 400 Millimeter
Exterior dimensions width 620 Millimeter
Weight 14 Kilogram
Material Stainless steel
Product group COOK
Documents
Customer Information Drawings (3)
Declarations of Conformity (2)
Use & Operating Manuals (2)
Tender specifications (4)
Revit-Data (1)
 without prices

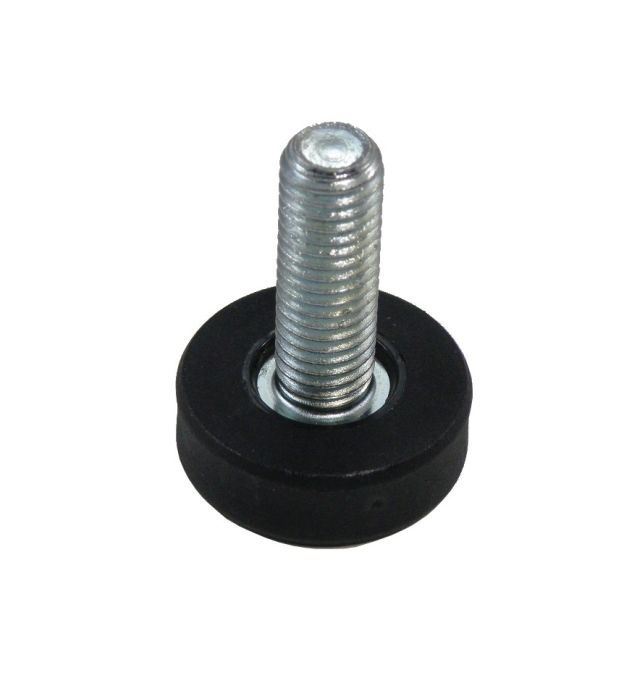

Gauge foot M10x30 black 121612
Gauge foot M10x30 black
(valid from 06/19/2015)
 4 Each
Bottom lid 400 cpl. 121652
Bottom lid 400 cpl.
(valid from 09/26/2016)
 1 Each

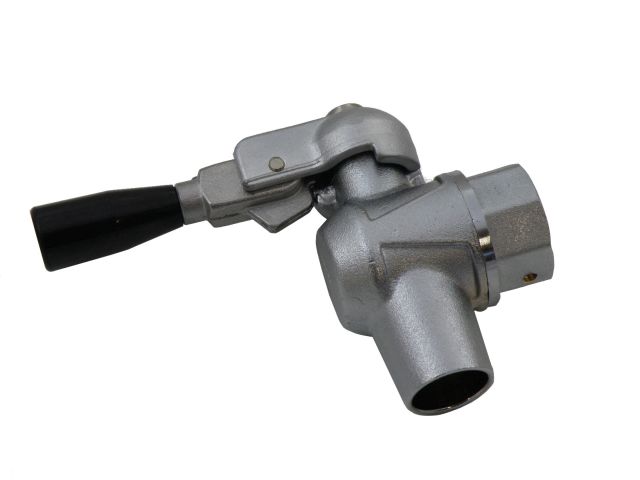

drain cock 121545
drain cock
(valid from 06/19/2015)
 1 Each

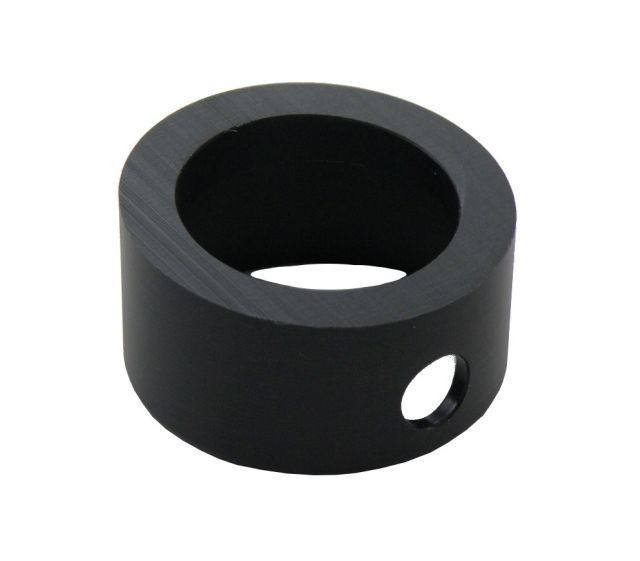

Rosette 121598
Rosette
(valid from 06/19/2015)
 1 Each

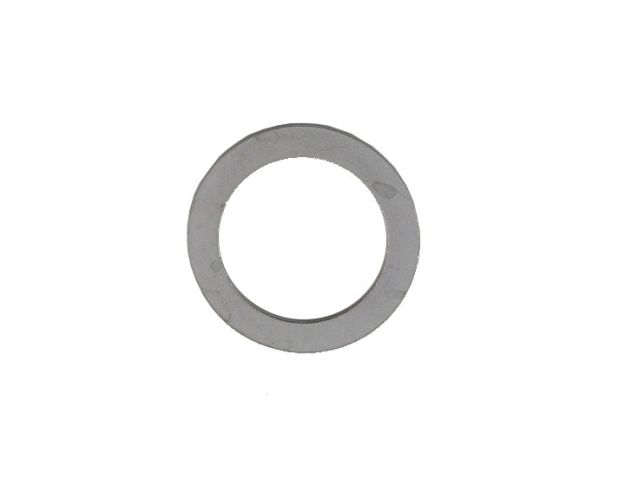

spacer 121555
spacer
(valid from 06/19/2015)
 1 Each

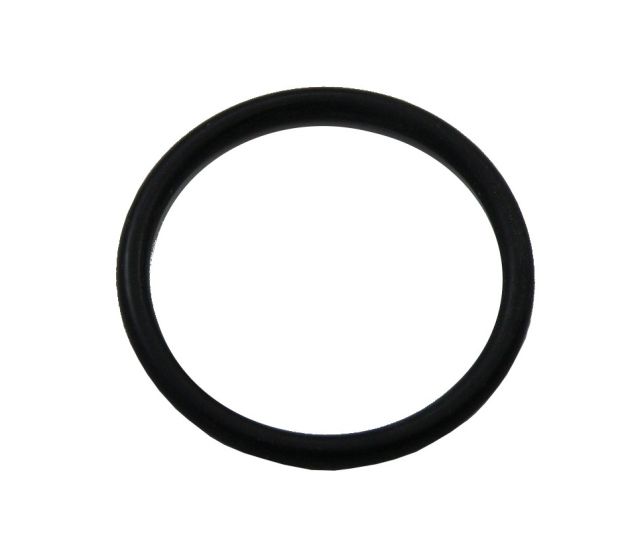

O-ring D 27x2,5 121591
O-ring D 27x2,5
(valid from 06/19/2015)
 1 Each

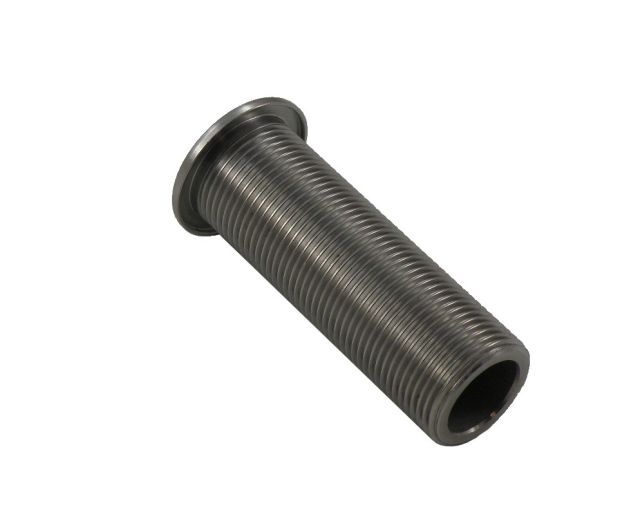

drain pipe 3/4" L=80MM 1.4571 121542
drain pipe 3/4" L=80MM 1.4571
(valid from 06/19/2015)
 1 Each

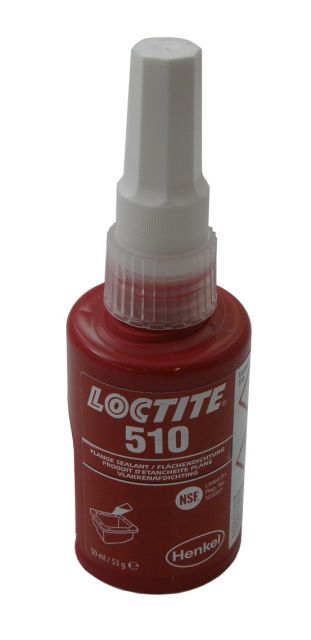

Loctite Nr.510 Tube 50 CCM 121580
Loctite Nr.510 Tube 50 CCM
(valid from 06/19/2015)
 1 Each

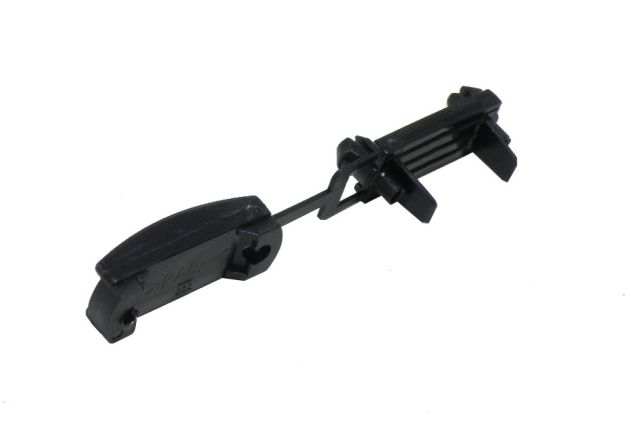

strain relief for connection cable 121616
strain relief for connection cable
(valid from 06/19/2015)
 1 Each

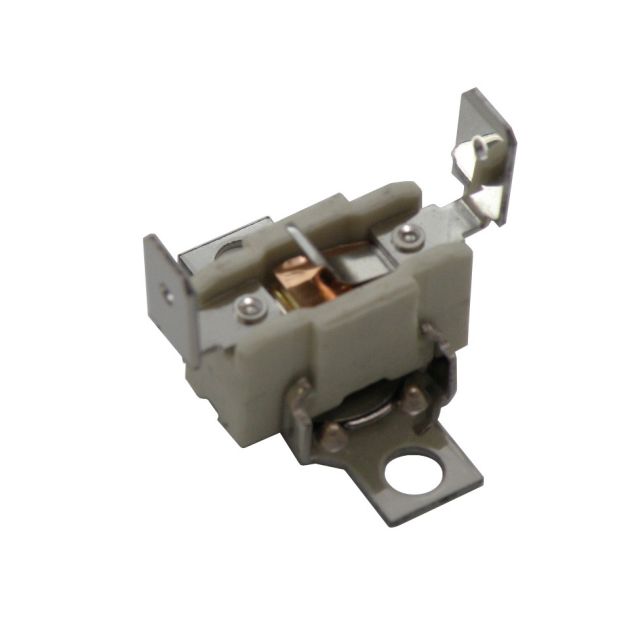

Safety temperature limiter 200°C 121607
Safety temperature limiter 200°C
(valid from 06/19/2015)
 1 Each

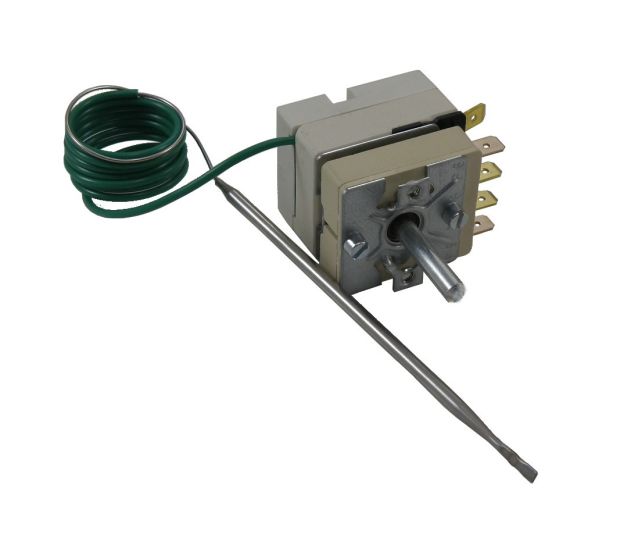

Temperature controller bain-marie 121608
Temperature controller bain-marie
(valid from 06/19/2015)
 1 Each

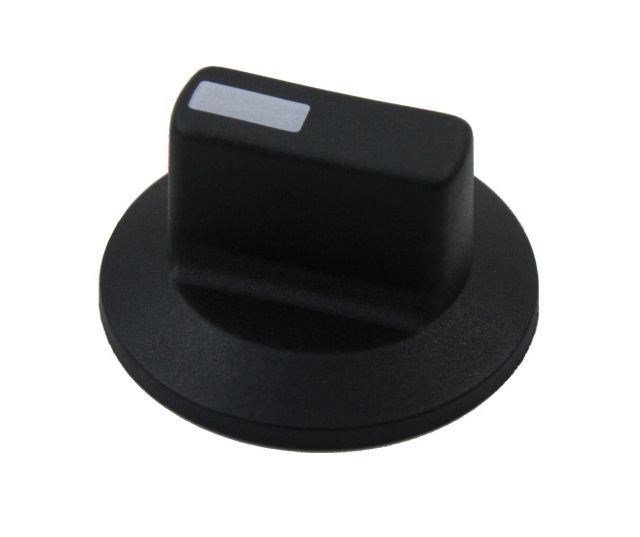

Control knob black notch to the right 121557
Control knob black notch to the right
(valid from 06/19/2015)
 1 Each

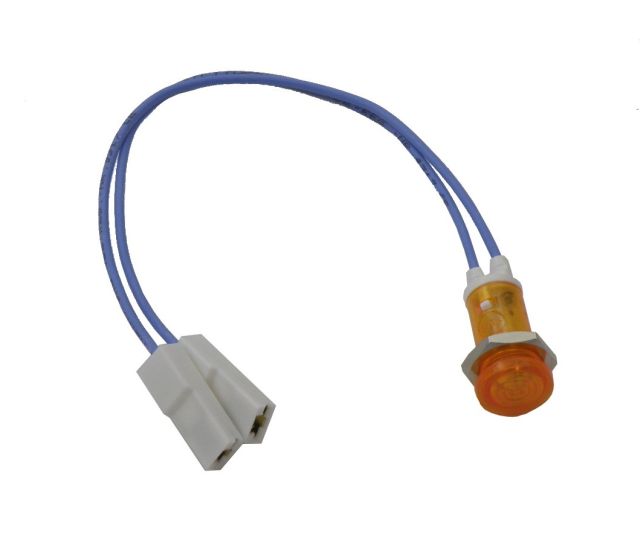

Signal lamp yellow 230VAC 121576
Signal lamp yellow 230VAC
(valid from 06/19/2015)
 1 Each

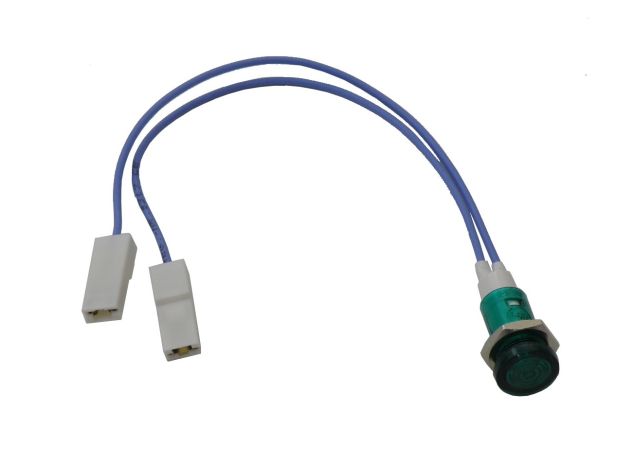

Signal lamp green 230VAC 121577
Signal lamp green 230VAC
(valid from 06/19/2015)
 1 Each

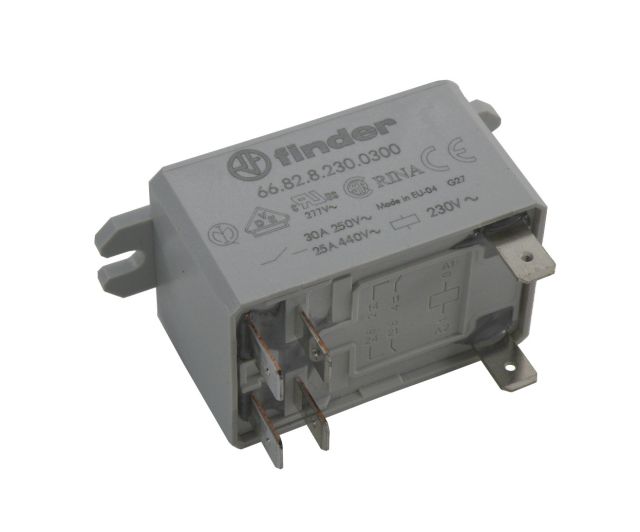

Contactor - 849618 121594
Contactor - 849618
(valid from 06/19/2015)
 1 Each

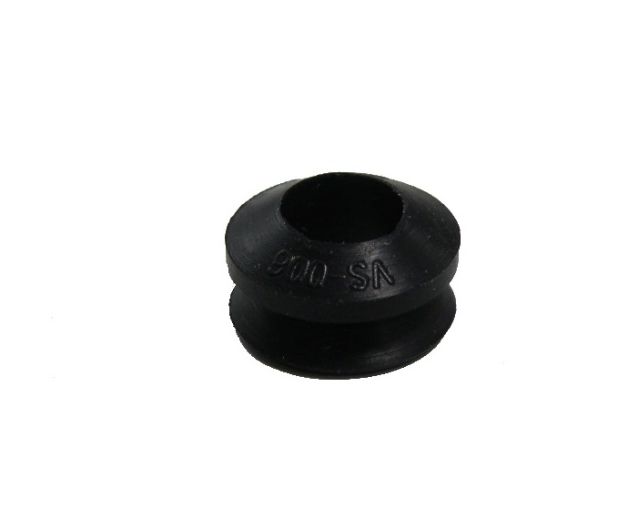

V-ring V 6 S 6401 121613
V-ring V 6 S 6401
(valid from 06/19/2015)
 1 Each
Self-adhessive control panel pasta cook 121553
Self-adhessive control panel pasta cook
(valid from 06/19/2015)
 1 Each

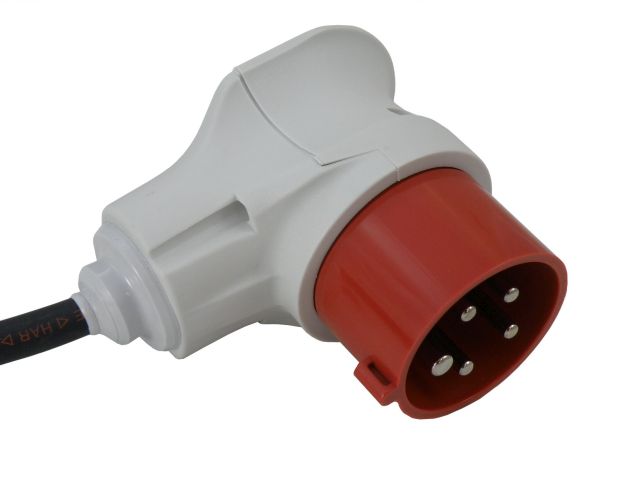

Power supply cable 5x1,5 cpl. with plug 121588
Power supply cable 5x1,5 cpl. with plug
(valid from 06/19/2015)
 1 Each
Holding frame for pasta basket set 121752
Holding frame for pasta basket set
(valid from 11/16/2017)
 1 Each
