ARW 10
Prod. No. 292469
Product details
Clearing trolleys
Made of corrosion-resistant stainless steel
Dimensions of shelves: shelves 1000 x 600mm
max. load per shelf: 80 kg
Load capacity: 160 kg
Illustration similar
Specs
Shelf dimensions length 1000 Millimeter
Shelf dimensions width 600 Millimeter
Exterior dimensions depth 1100 Millimeter
Exterior dimensions width 700 Millimeter
Material Stainless steel
Product group Serving trolleys
Documents
Use & Operating Manuals (2)
 without prices
WHEEL, FIXED- 2478 PIG 125 S70 SL 15MM 373986
WHEEL, FIXED- 2478 PIG 125 S70 SL 15MM
(valid from 10/17/2011)
 2 Each
Swivel castor w. br. 125 M10x15 zinc-pl. 373988
Swivel castor w. br. 125 M10x15 zinc-pl.
(valid from 10/17/2011)
 2 Each
NUT,CAP-HEX- M10 DIN 917 1.4301 82238
NUT,CAP-HEX- M10 DIN 917 1.4301
(valid from 10/17/2011)
 4 Each
Swivel castor 125 M10x15 zinc-pl. 373987
Swivel castor 125 M10x15 zinc-pl.
(valid from 10/17/2011)
 2 Each
Fixed wheel 125, plate; PA 382549
Fixed wheel 125, plate; PA
(valid from 03/01/2018)
 2 Each
Swivel castor 65 M10 PA 382552
Swivel castor 65 M10 PA
(valid from 03/01/2018)
 2 Each
Swivel castor 125,R-hol. ;M10, PA gr. 386508
Swivel castor 125,R-hol. ;M10, PA gr.
(valid from 10/28/2022)
 2 Each
Swivel castor 125 lock.,R-hol.;M10,PA gr 386507
Swivel castor 125 lock.,R-hol.;M10,PA gr
(valid from 10/28/2022)
 2 Each
WASHER 40RD F. FIXED WHEELS 144400
WASHER 40RD F. FIXED WHEELS
(valid from 09/25/1997)
 2 Each

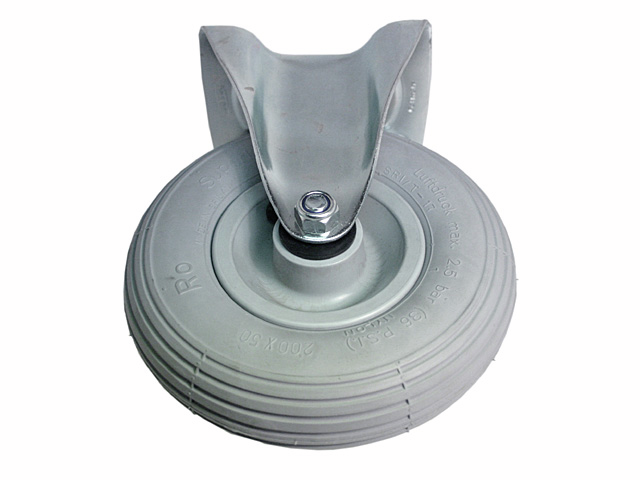

WHEEL, FIXED- 3478 DPR 200 P63 145135
WHEEL, FIXED- 3478 DPR 200 P63
(valid from 09/25/1997)
 2 Each

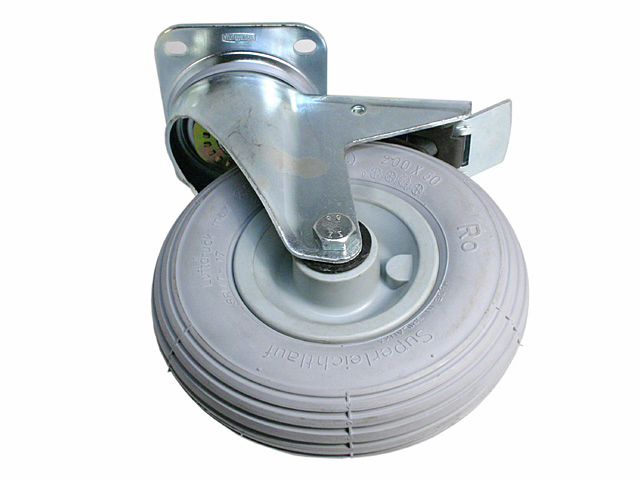

WHEEL, CASTER-3477 DPR 200 P63 2PR 145136
WHEEL, CASTER-3477 DPR 200 P63 2PR
(valid from 09/25/1997)
 2 Each

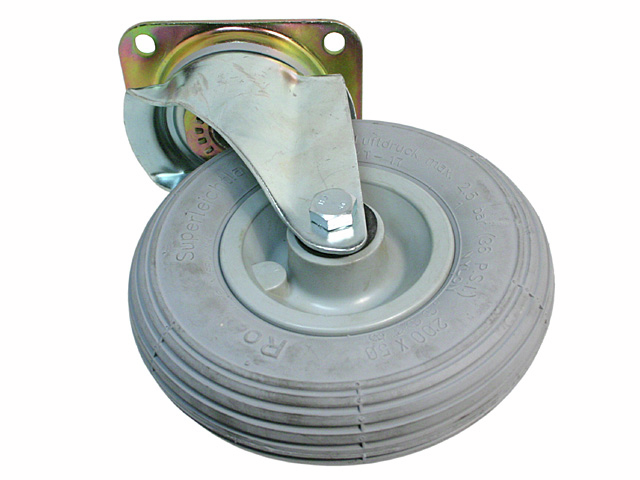

WHEEL, CASTER- 3470 DPR 200 P63 145134
WHEEL, CASTER- 3470 DPR 200 P63
(valid from 09/25/1997)
 2 Each
FIXED WHEEL 125 CNS TPR GL PL3 146939
FIXED WHEEL 125 CNS TPR GL PL3
(valid from 09/25/1997)
 2 Each
CAST. WHL 125 TOT LOCK CNS TPR GL TD. 10 146945
CAST. WHL 125 TOT LOCK CNS TPR GL TD. 10
(valid from 09/25/1997)
 2 Each
CAST. WHL. 125 G 10x15 CNS 146944
CAST. WHL. 125 G 10x15 CNS
(valid from 09/25/1997)
 2 Each
Castor wheel L-RD 162R-FI-VLI-SG, AIRID. 371215
Castor wheel L-RD 162R-FI-VLI-SG, AIRID.
(valid from 06/21/2012)
 2 Each
cator wheel L-RD 162R-VLI-SG, AIRID. 371214
cator wheel L-RD 162R-VLI-SG, AIRID.
(valid from 06/21/2012)
 2 Each
Fixed wheel B-RD 162R-VLI-SG, AIRID. 371216
Fixed wheel B-RD 162R-VLI-SG, AIRID.
(valid from 06/21/2012)
 2 Each
L-roll 125 R-hole, M10, PA (gr), luftid 386509
L-roll 125 R-hole, M10, PA (gr), luftid
(valid from 08/07/2023)
 2 Each

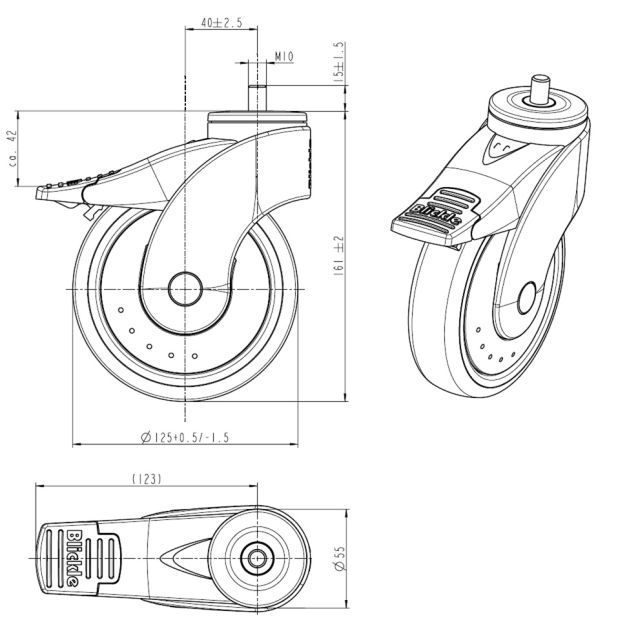

Cast. whl. lock. 125, rear hole; PA, M10 382554
Cast. whl. lock. 125, rear hole; PA, M10
(valid from 03/01/2018)
 2 Each
Swiv.cast.125 lock.,R-hol.;M10,PA gr.air 386510
Swiv.cast.125 lock.,R-hol.;M10,PA gr.air
(valid from 08/07/2023)
 2 Each

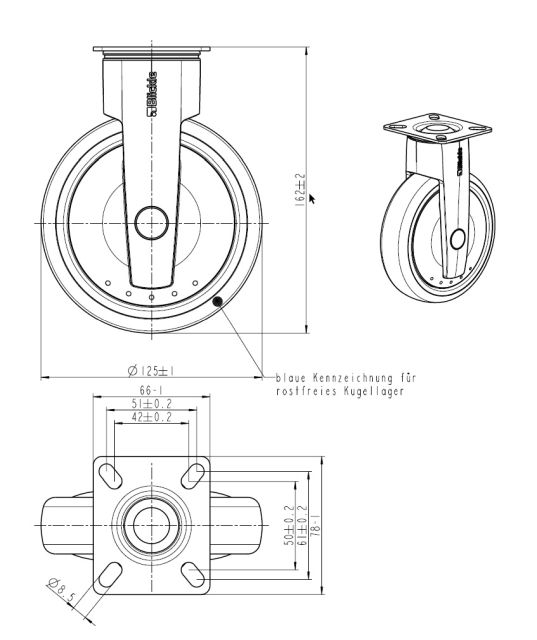

Fixed wheel 125, plate; PA air-identical 382557
Fixed wheel 125, plate; PA air-identical
(valid from 03/01/2018)
 2 Each
Castor wheel ZPF FS Ø 125 galv. air id. 382721
Castor wheel ZPF FS Ø 125 galv. air id.
(valid from 10/14/2021)
 2 Each
Castor wheel ZPF Ø 125 galv. air id. 382722
Castor wheel ZPF Ø 125 galv. air id.
(valid from 10/14/2021)
 2 Each
SCREW, CYL. HEX. M6 X 16 DIN 912 1.4301 70609
SCREW, CYL. HEX. M6 X 16 DIN 912 1.4301
(valid from 10/14/2021)
 4 Each
Adapter sleeve D22.5x62 360281
Adapter sleeve D22.5x62
(valid from 10/14/2021)
 4 Each
Wall guard D100 RAL 7043 373304
Wall guard D100 RAL 7043
(valid from 09/25/1997)
 4 Each
Rep-Set wall deflector B100 RAL7043 SW10 121813
Rep-Set wall deflector B100 RAL7043 SW10
(valid from 10/16/2018)
 1 Each
PLATE, NOISE-SUPPR. 500X190X1,9 136020
PLATE, NOISE-SUPPR. 500X190X1,9
(valid from 09/25/1997)
 1 Each
Connecting piece for SW 144906
Connecting piece for SW
(valid from 09/25/1997)
 4 Each
