SPEISEAUSGABEWAGEN SAG 3 BA

Prod. No. 563602

Product details

SPEISEAUSGABEWAGEN SAG 3 BA

Added to Your Shopping Cart

Specs


Castor arrangement	A: 4 castors at the outer corners of the trolley

Spareparts

without prices

Image	Name	Quantity in device
Image	Code	146223	Name	Stopper f. corner protector RAL 7024 (valid from 08/14/1997)	Quantity in device	24 Each
Image	Code	367982	Name	Heating well, complete, 700 W (valid from 08/14/1997)	Quantity in device	3 Each
Image	Code	105020	Name	PIPE HEATER 20.21719.000 700W 230V (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	294096	Name	SENSOR MOUNTING F.GN (valid from 05/18/2006)	Quantity in device	3 Each
Image	Code	293813	Name	SIDE SECTION, LEFT, SAG2, W.SLIDING CVR. (valid from 08/14/1997)	Quantity in device	1 Each
Image	Code	146418	Name	SIDE SECTION RIGHT 654 LG (valid from 08/14/1997)	Quantity in device	1 Each
Image	Code	146203	Name	SEAL,RUBBER- 4,2 x 2 (valid from 08/14/1997)	Quantity in device	2 Meter
Image	Code	83589	Name	NUT, WELD, SNO 5601 VERS. C F.3.5 ST. (valid from 08/14/1997)	Quantity in device	8 Each
Image	Code	81166	Name	Tapping screw 3,5X9,5 DIN 7981 1.4301 (valid from 08/14/1997)	Quantity in device	12 Each
Image	Code	146143	Name	CURVED HANDLE (valid from 08/14/1997)	Quantity in device	2 Each
Image	Code	279446	Name	SCREW, ATTACHMENT M5X4 DIN 923 (valid from 08/14/1997)	Quantity in device	4 Each
Image	Code	279445	Name	SCREW,STOP M5X10 DIN 923 (valid from 08/14/1997)	Quantity in device	4 Each
Image	Code	146400	Name	Telescopic slides 3x1/1 (valid from 08/14/1997)	Quantity in device	2 Pair
Image	Code	279444	Name	STOP (valid from 08/14/1997)	Quantity in device	4 Each
Image	Code	150088	Name	SCREW LOCKING ADHESIVE K 24250 (valid from 08/14/1997)	Quantity in device	0.05 Each
Image	Code	276953	Name	HEATING 250W F. HEATED CABINET (valid from 08/14/1997)	Quantity in device	3 Each
Image	Code	105029	Name	Tubular heater 250W 20.21843 230V (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	385096	Name	Seal 9x5,5 black (valid from 08/14/1997)	Quantity in device	5.46 Meter
Image	Code	145411	Name	SCR. CONN PIPEFIX 1/2"-15 NO 19.183.001R (valid from 08/13/1997)	Quantity in device	3 Each
Image	Code	146442	Name	TOGGLE,COCK- (valid from 08/13/1997)	Quantity in device	3 Each

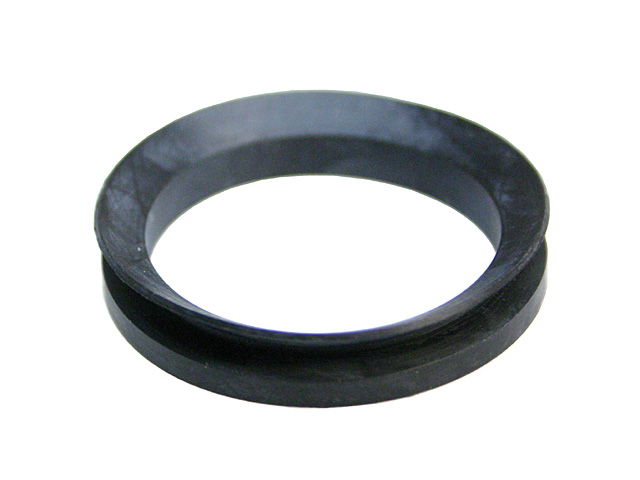

Image	Code	146447	Name	RING CONNEC. TYPE 35A MAT. NBR-N 3909-60 (valid from 08/13/1997)	Quantity in device	3 Each
Image	Code	146504	Name	Glass wool 1080x360x20 (valid from 08/14/1997)	Quantity in device	1 Each
Image	Code	146507	Name	Glass wool 265x590x20 (valid from 08/14/1997)	Quantity in device	1 Each
Image	Code	146505	Name	Glass wool 420x600x20 (valid from 08/14/1997)	Quantity in device	2 Each
Image	Code	146503	Name	Glass wool 1150x600x20 (valid from 08/14/1997)	Quantity in device	2 Each
Image	Code	146506	Name	Glass wool 540x420x20 (valid from 08/14/1997)	Quantity in device	2 Each
Image	Code	144345	Name	Ball catch IDEAL size III brass 70x13R (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	279539	Name	Distance sheet for ball catch 2 mm (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	146680	Name	EXPAND. NUT 72.30.459 F. SHEET SCRW. 4.2 (valid from 08/13/1997)	Quantity in device	4 Each
Image	Code	146651	Name	COVER CAP F.SCREWS (valid from 08/13/1997)	Quantity in device	2 Each
Image	Code	146701	Name	COVER CAP FOR SCREW (valid from 08/13/1997)	Quantity in device	2 Each
Image	Code	146660	Name	FRONT FOIL 5 HEATING POINTS (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	106304	Name	Cable gland M20x1.5 black (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	106311	Name	Hexagon nut M20x1.5 (plastic) (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	105798	Name	MAINS SWITCH (valid from 08/13/1997)	Quantity in device	5 Each
Image	Code	146654	Name	TOGGLE-THERMOSTAT- (valid from 08/13/1997)	Quantity in device	5 Each
Image	Code	105429	Name	terminal block Wieland KL 24/3 SL (valid from 08/13/1997)	Quantity in device	1 Each
Image	Code	146902	Name	FIXING COLLAR (valid from 08/13/1997)	Quantity in device	4 Each
