BPT E 36 (30) C banquet
Prod. No. 386621
Product details
B.PROTHERM E 36 (30) x 2/1 cooled banquet
B.PROTHERM E banquet trolley 2/1, convection-cooled,
made of corrosion-resistant steel, with hinged door, mobile.
36 support ledges: 30 x 2/1 and 6 x 1/1.
Space between ledges: 38.3 mm
Temperature range adjustable between +2 °C and +10 °C.
Refrigerant: propane R290
Mains frequency: 50/60 Hz

Specs
Ledge spacing 38.3 Millimeter
Exterior dimension height 1795 Millimeter
Electrical Yes
Number of supports/ledges 36 Pair
Supports/ledges Yes
Exterior dimensions depth 941 Millimeter
Exterior dimensions width 820 Millimeter
Weight 155 Kilogram
Temperature range to 10 °C
Temperature range from 2 °C
Heating/cooling technology active convection cooling
Material Stainless steel
Product group B.PROTHERM stainless steel
Documents
Other documents (4)
Declarations of Conformity (1)
Use & Operating Manuals (9)
 without prices
Comfort opening right without drawbar 388101
Comfort opening right without drawbar
(valid from 09/28/2021)
 1 Each

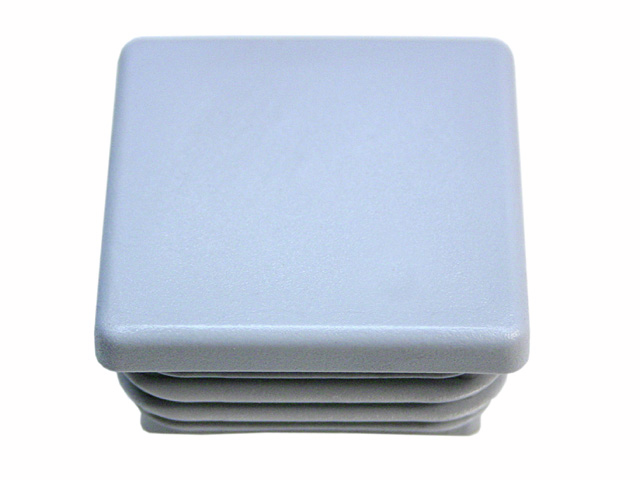

PLUG-LAMINATE- 40X40X1,25 SERIES 120 144218
PLUG-LAMINATE- 40X40X1,25 SERIES 120
(valid from 09/07/2022)
 2 Each
washer A 8.4 DIN 125 brass 83031
washer A 8.4 DIN 125 brass
(valid from 09/07/2022)
 3 Each
Spring VD-165 386646
Spring VD-165
(valid from 07/28/2022)
 1 Each
Pressure spring D-180-03 FA.GUTEKUNST 246508
Pressure spring D-180-03 FA.GUTEKUNST
(valid from 07/28/2022)
 2 Each
Mounting bracket 80° 388136
Mounting bracket 80°
(valid from 09/29/2021)
 1 Each
Corpus hinge top right 386649
Corpus hinge top right
(valid from 09/29/2021)
 1 Each

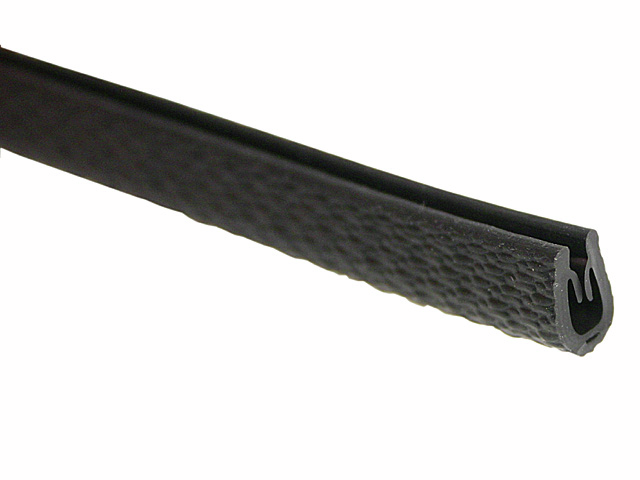

Edge protection 1-2mm black 105108
Edge protection 1-2mm black
(valid from 03/15/2022)
 0.48 Meter

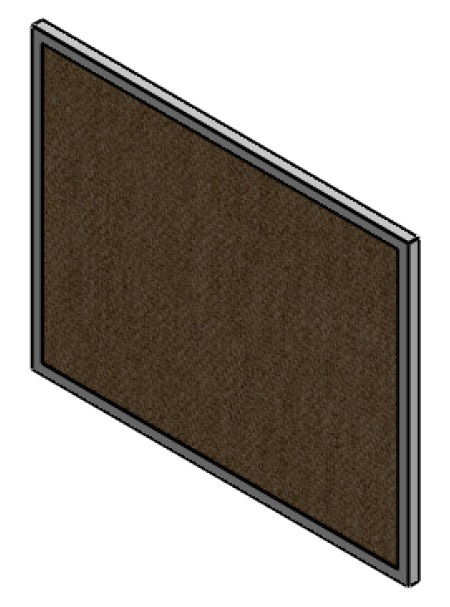

Filter 386724
Filter
(valid from 09/29/2021)
 1 Each

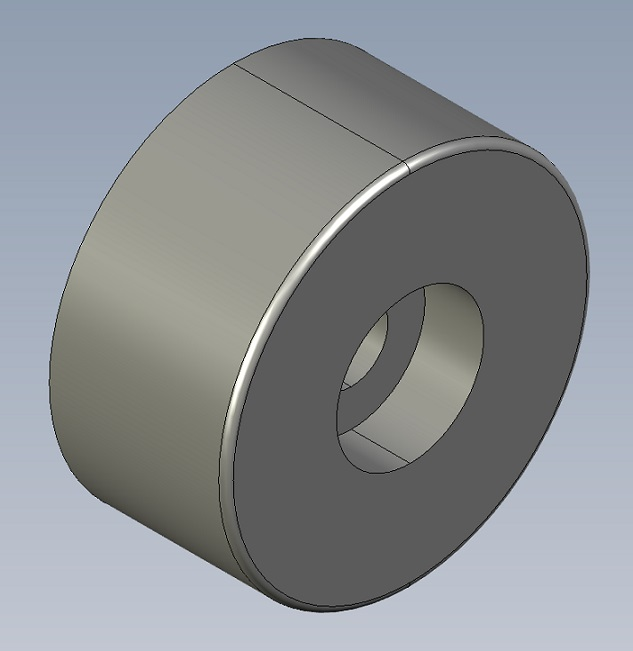

Rubber buffer D25xh12-d5 374840
Rubber buffer D25xh12-d5
(valid from 09/29/2021)
 1 Each
Tube D28x1 L=586,4 386786
Tube D28x1 L=586,4
(valid from 09/30/2021)
 1 Each
body for push handle holder 372911
body for push handle holder
(valid from 09/30/2021)
 2 Each
Cover push handle holder left, logo 372913
Cover push handle holder left, logo
(valid from 09/30/2021)
 1 Each
Cover push handle holder right, logo 372912
Cover push handle holder right, logo
(valid from 09/30/2021)
 1 Each
Hinge 386652
Hinge
(valid from 09/29/2021)
 1 Each
Cold module 2/1 R290 50/60Hz 149776
Cold module 2/1 R290 50/60Hz
(valid from 09/29/2021)
 1 Each

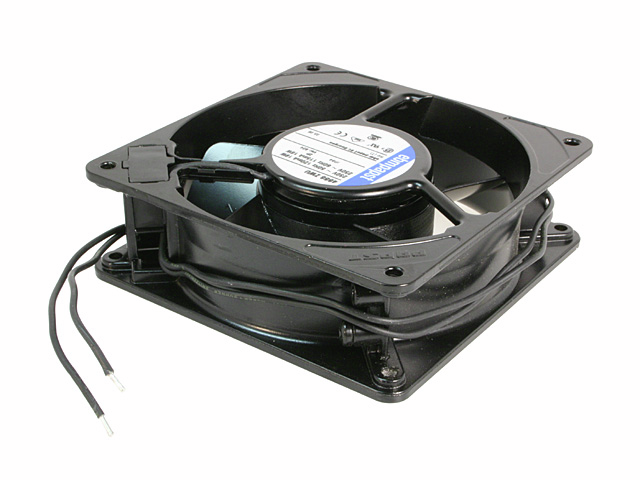

Axial fan 4656 ZWU 230VAC 149200
Axial fan 4656 ZWU 230VAC
(valid from 09/07/2022)
 2 Each
Condenser Fan of Cooling Modul with R290 134246
Condenser Fan of Cooling Modul with R290
(valid from 03/19/2024)
 1 Each

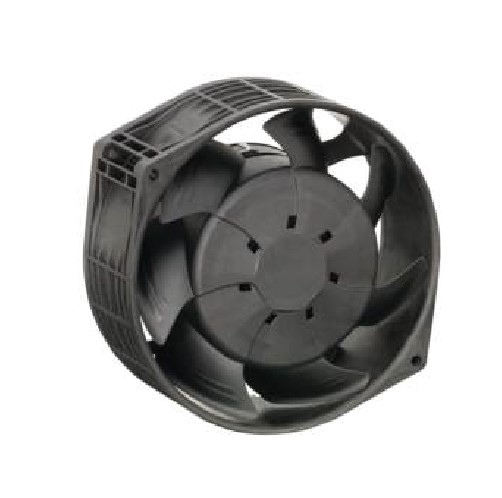

Condenser Fan of Cooling Modul with R290 149785
Condenser Fan of Cooling Modul with R290
(valid from 09/07/2022)
 1 Each
mold without lock 386579
mold without lock
(valid from 09/24/2021)
 1 Each
mold with lock 386581
mold with lock
(valid from 09/24/2021)
 1 Each
Lock 386673
Lock
(valid from 09/24/2021)
 1 Each

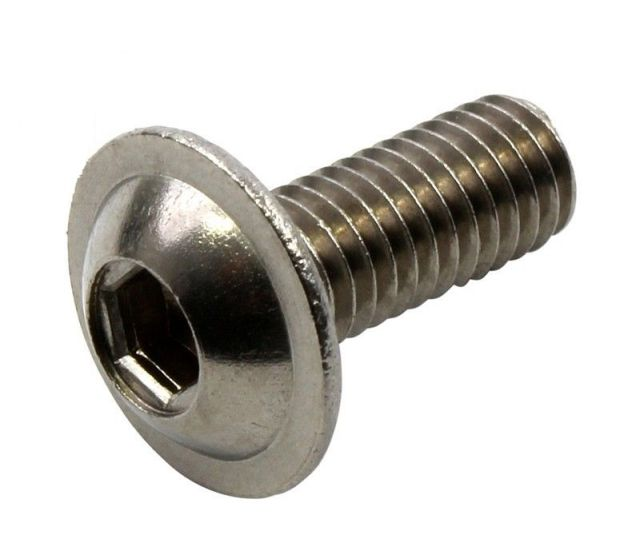

Allen screw ISO 7380 M5x8 A2 m. Fl. 70914
Allen screw ISO 7380 M5x8 A2 m. Fl.
(valid from 09/24/2021)
 1 Each

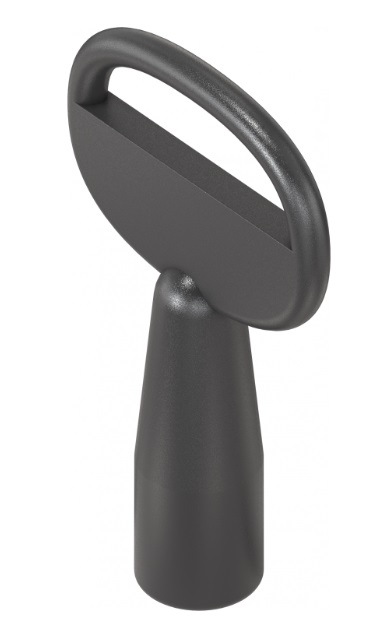

Key 386903
Key
(valid from 10/20/2021)
 2 Each
Push Rod 36 386767
Push Rod 36
(valid from 09/24/2021)
 1 Each
Spring cpl. 386771
Spring cpl.
(valid from 11/29/2022)
 1 Each
Knob cpl. 388138
Knob cpl.
(valid from 09/24/2021)
 1 Each
Grip 386565
Grip
(valid from 09/24/2021)
 1 Each
Pressure spring VD-180-07 377734
Pressure spring VD-180-07
(valid from 08/03/2022)
 2 Each
Cover 386562
Cover
(valid from 09/24/2021)
 1 Each
Bushing 389058
Bushing
(valid from 09/24/2021)
 1 Each
Seal 386778
Seal
(valid from 09/24/2021)
 4.005 Meter
Display Mount 386547
Display Mount
(valid from 09/30/2021)
 1 Each
BPT Display 107664
BPT Display
(valid from 09/30/2021)
 1 Each
Display Foil Atlas 386476
Display Foil Atlas
(valid from 09/30/2021)
 1 Each
Plug holder universal 369654
Plug holder universal
(valid from 09/30/2021)
 1 Each
plastic cover ring for plug holder 117766
plastic cover ring for plug holder
(valid from 10/13/2021)
 1 Each
Temperature sensor PT1000_B.PROTHERM 107694
Temperature sensor PT1000_B.PROTHERM
(valid from 09/30/2021)
 1 Each

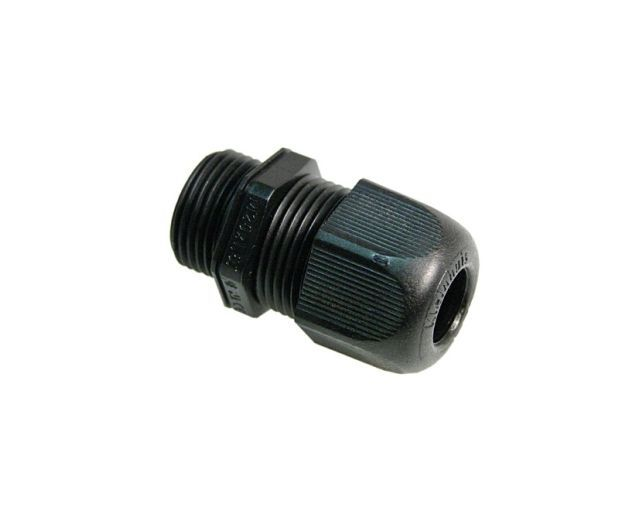

Screwed cable gland, M12 PVC black 106302
Screwed cable gland, M12 PVC black
(valid from 09/30/2021)
 1 Each

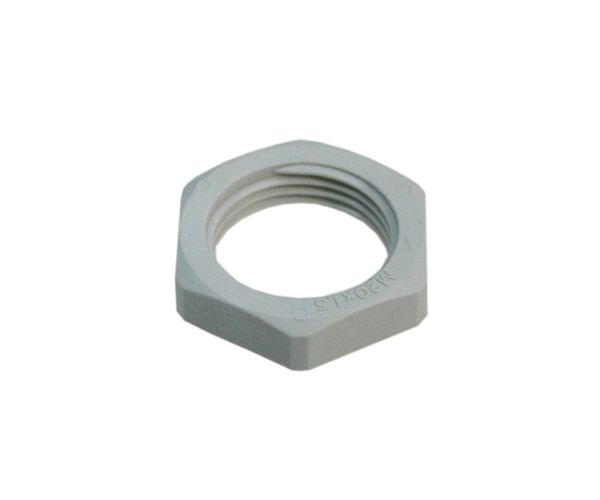

SkinTop cable screw jnt., Nut M12 PVC 106309
SkinTop cable screw jnt., Nut M12 PVC
(valid from 09/30/2021)
 1 Each
terminal block Wieland KL 24/3 SL 105429
terminal block Wieland KL 24/3 SL
(valid from 09/30/2021)
 1 Each
BPT Power PCB 107722
BPT Power PCB
(valid from 09/30/2021)
 1 Each
Cable gland M20x1.5 black 106304
Cable gland M20x1.5 black
(valid from 09/30/2021)
 1 Each
Hexagon nut M20x1.5 (plastic) 106311
Hexagon nut M20x1.5 (plastic)
(valid from 09/30/2021)
 1 Each
magnetic switch MK4-1A75-C-300W 106708
magnetic switch MK4-1A75-C-300W
(valid from 09/30/2021)
 1 Each
Decal pressure 107691
Decal pressure
(valid from 09/30/2021)
 1 Each
Decal equipotential bonding 107692
Decal equipotential bonding
(valid from 09/30/2021)
 1 Each
Decal warning flammable material 107690
Decal warning flammable material
(valid from 10/20/2021)
 1 Each
Spiral cabel Europe 3x1,5 qmm BL-570 107682
Spiral cabel Europe 3x1,5 qmm BL-570
(valid from 05/23/2022)
 1 Each
Spiral cable UK 3x1,5 qmm BL-570 (13A) 107683
Spiral cable UK 3x1,5 qmm BL-570 (13A)
(valid from 09/30/2021)
 1 Each
Spiral cable CH 3x1,5 qmm BL-570 (10A) 107684
Spiral cable CH 3x1,5 qmm BL-570 (10A)
(valid from 09/30/2021)
 1 Each
Spiral cable AUS 3x1,5 qmm B-570 10A 107687
Spiral cable AUS 3x1,5 qmm B-570 10A
(valid from 09/30/2021)
 1 Each
Spiral cable Denmark 3x1,5 qmm B-570 13A 107689
Spiral cable Denmark 3x1,5 qmm B-570 13A
(valid from 09/30/2021)
 1 Each

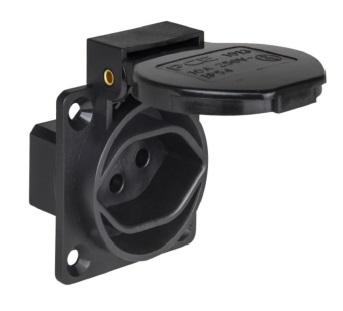

Protective-socket Swiss-Standard T13 bla 107715
Protective-socket Swiss-Standard T13 bla
(valid from 09/30/2021)
 1 Each

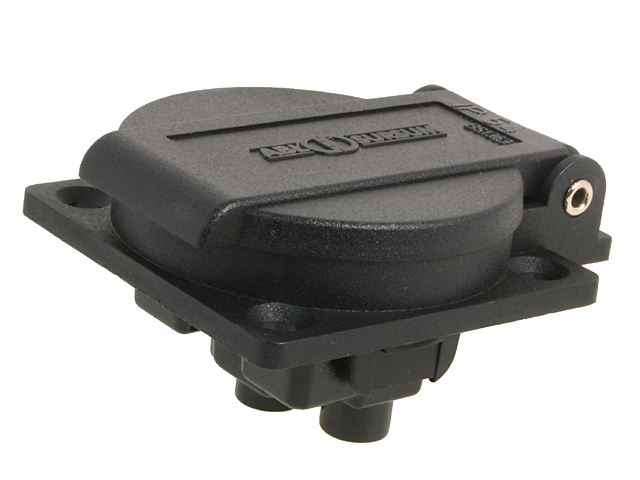

Build-in socket British standard 106803
Build-in socket British standard
(valid from 09/30/2021)
 1 Each

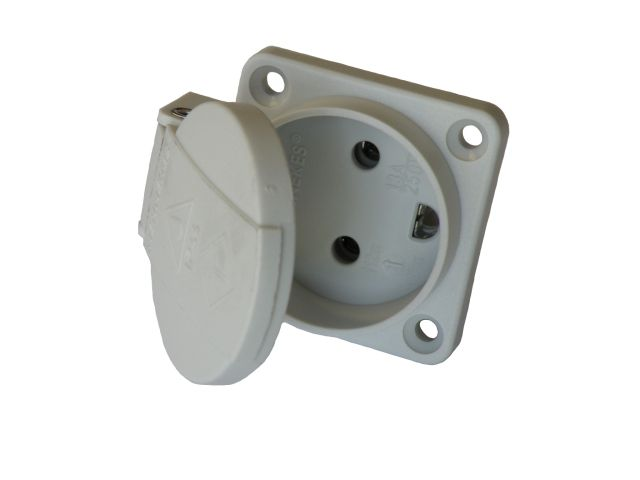

Safety socket Denmark 106822
Safety socket Denmark
(valid from 09/30/2021)
 1 Each

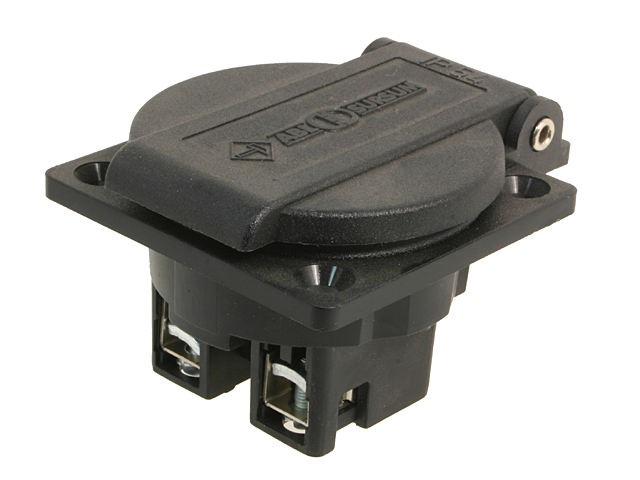

Build-in socket with pin 106737
Build-in socket with pin
(valid from 09/30/2021)
 1 Each

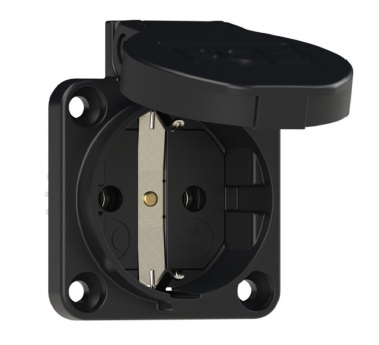

Socket outlet protective contact-black 107716
Socket outlet protective contact-black
(valid from 09/30/2021)
 1 Each

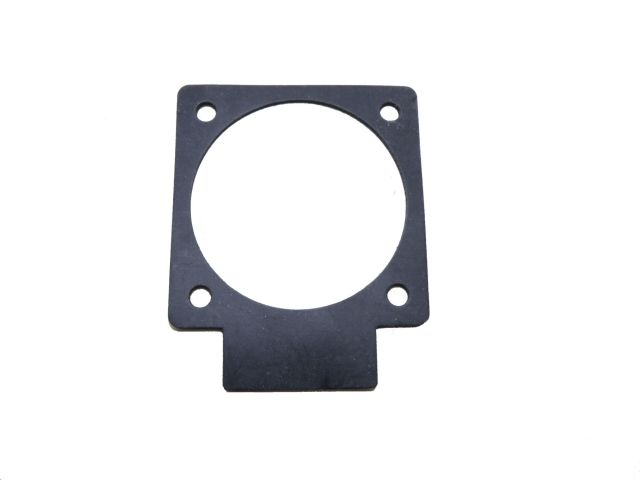

seal for ABL electrical outlets 106891
seal for ABL electrical outlets
(valid from 09/30/2021)
 1 Each

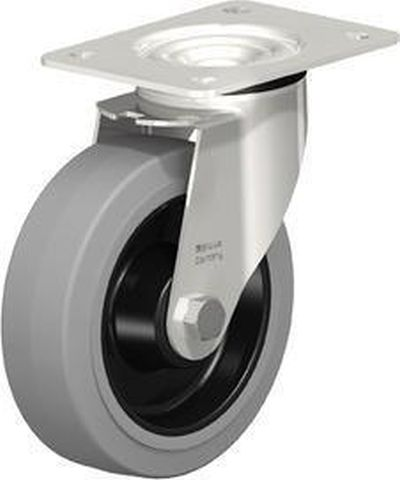

Swivel castor LEX-POEV 160XR-SG-844624 373397
Swivel castor LEX-POEV 160XR-SG-844624
(valid from 09/29/2021)
 2 Each

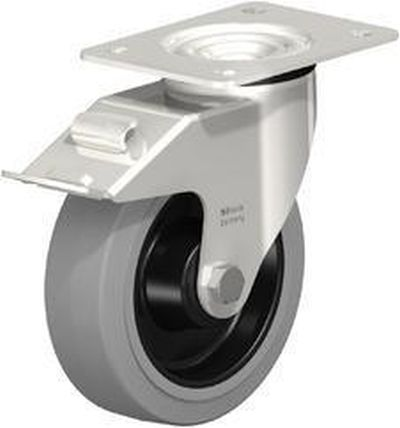

Swivel castor LEX-POEV 160XR-SG-FI-84462 373398
Swivel castor LEX-POEV 160XR-SG-FI-84462
(valid from 09/29/2021)
 2 Each
WHEEL, FIXED-BX-POEV 160XR-SG-844626 373399
WHEEL, FIXED-BX-POEV 160XR-SG-844626
(valid from 09/29/2021)
 2 Each

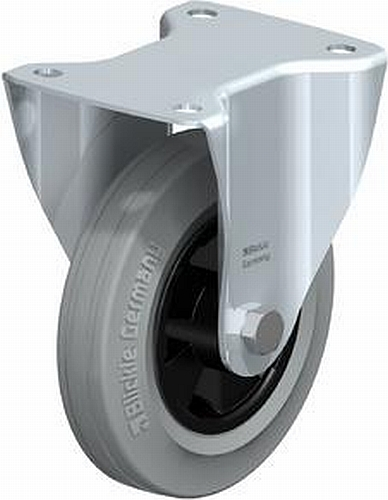

FIXED WHEEL B-VPP 160R-SG 373393
FIXED WHEEL B-VPP 160R-SG
(valid from 09/29/2021)
 2 Each

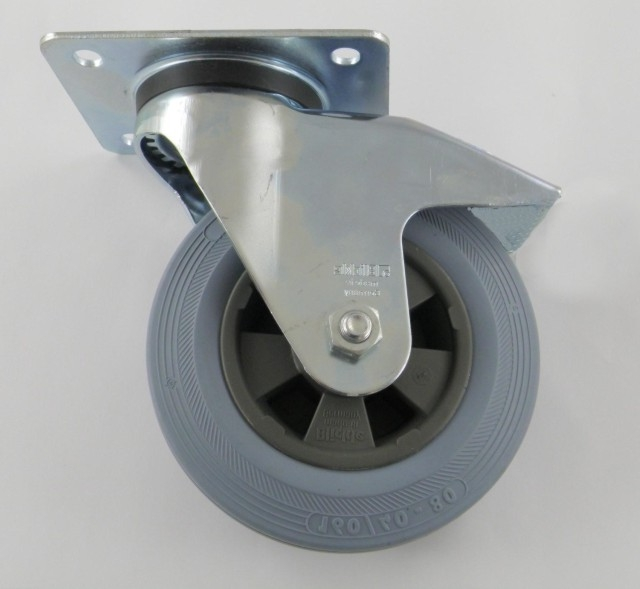

CASTER WHEEL LE-VPP 200R-SG 373394
CASTER WHEEL LE-VPP 200R-SG
(valid from 09/29/2021)
 2 Each

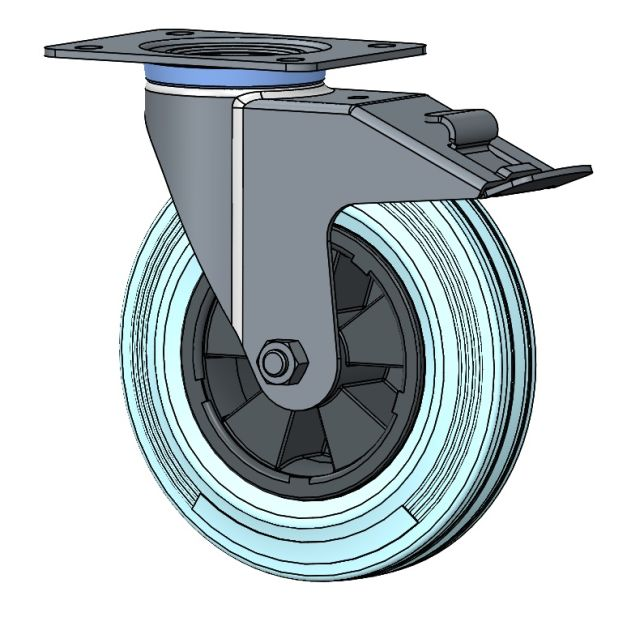

CASTER WHEEL LE-VPP 200R-FI-SG 373395
CASTER WHEEL LE-VPP 200R-FI-SG
(valid from 09/29/2021)
 2 Each

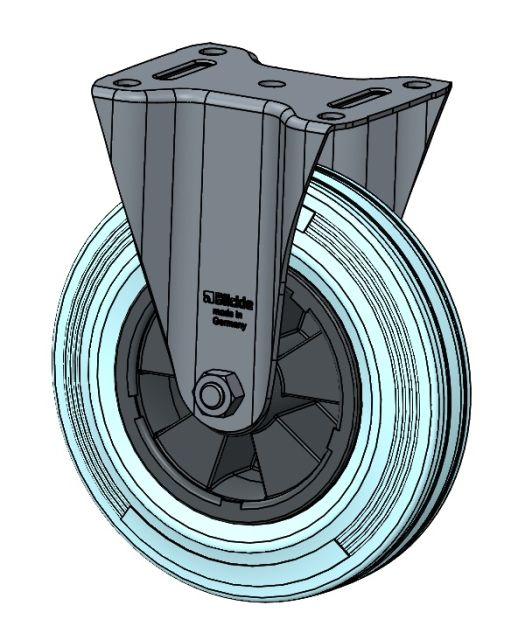

FIXED WHEEL B-VPP 200R-SG- 763618 373396
FIXED WHEEL B-VPP 200R-SG- 763618
(valid from 09/29/2021)
 2 Each

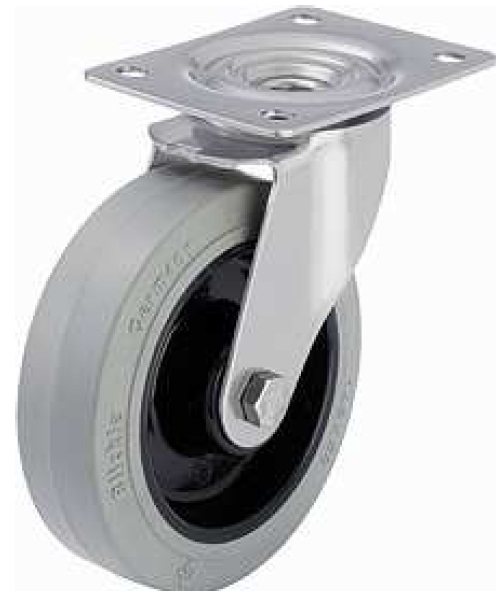

WHEEL, CASTER-LEX-POEV 200XR-SG-844628 373400
WHEEL, CASTER-LEX-POEV 200XR-SG-844628
(valid from 09/29/2021)
 2 Each

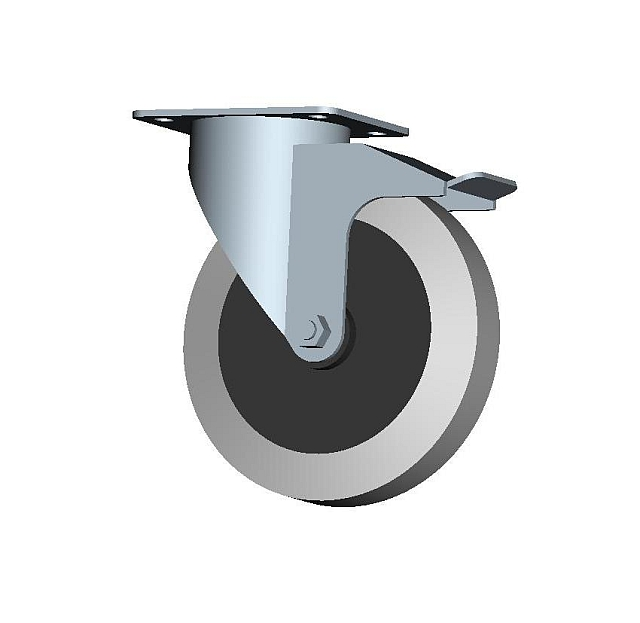

WHEEL, CASTER LEX-POEV 200XR-SG-844629 373401
WHEEL, CASTER LEX-POEV 200XR-SG-844629
(valid from 09/29/2021)
 2 Each

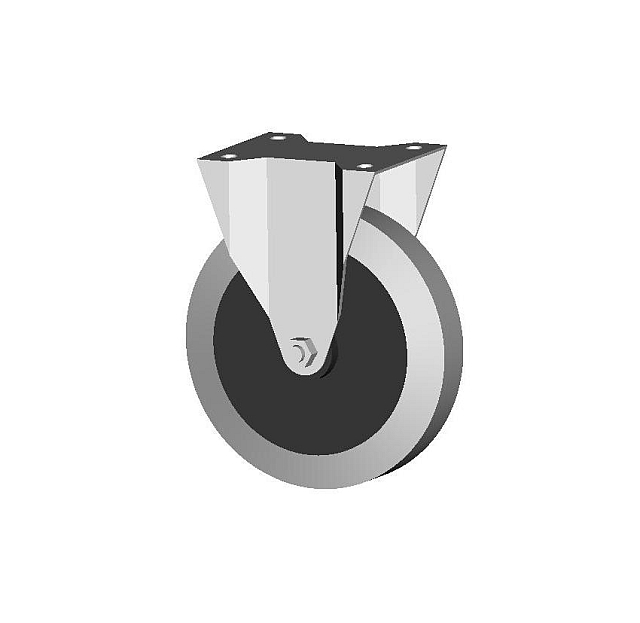

Fixed castor BX-POEV 200XR-SG-844630 373402
Fixed castor BX-POEV 200XR-SG-844630
(valid from 09/29/2021)
 2 Each
Castor wheel LE-VPP 160R-SG 373391
Castor wheel LE-VPP 160R-SG
(valid from 09/29/2021)
 2 Each
Castor wheel with brake LE-VPP160R-FI-SG 373392
Castor wheel with brake LE-VPP160R-FI-SG
(valid from 09/29/2021)
 2 Each
Swivel castor LE-POEV 160R-FI-SG 843898 373593
Swivel castor LE-POEV 160R-FI-SG 843898
(valid from 09/14/2022)
 2 Each

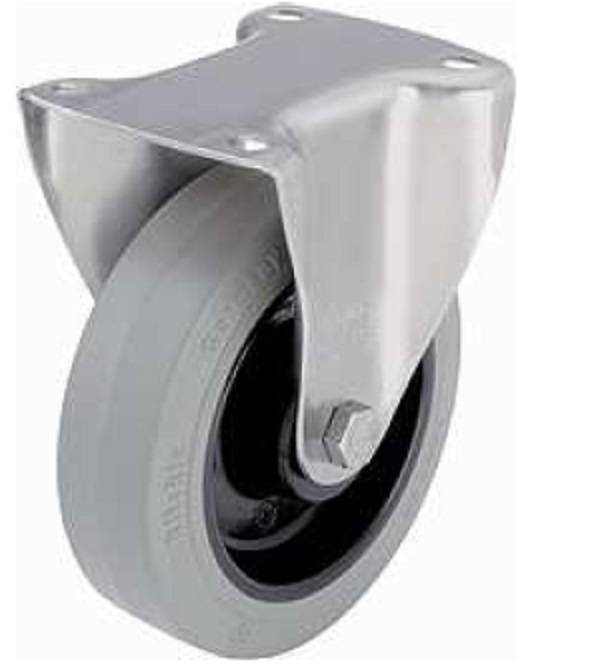

Fixed castor B-POEV 160R-SG 843899 373594
Fixed castor B-POEV 160R-SG 843899
(valid from 09/14/2022)
 2 Each

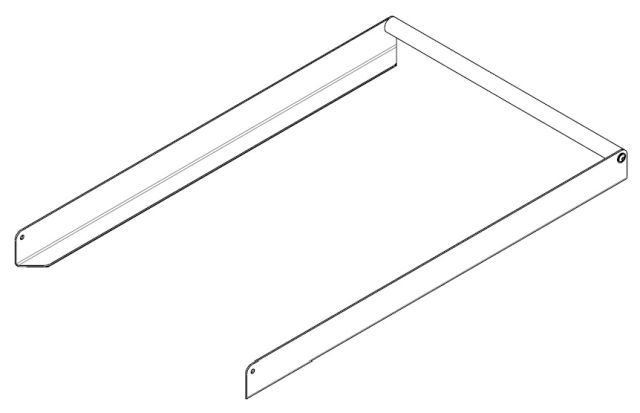

3-sided gallery for BPT E banquet 387238
3-sided gallery for BPT E banquet
(valid from 12/02/2021)
 1 Each

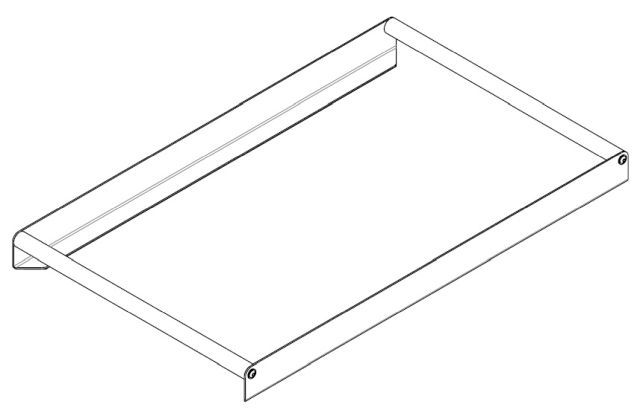

4-sided gallery for BPT E banquet 387233
4-sided gallery for BPT E banquet
(valid from 12/02/2021)
 1 Each
