Sample images
TS-2 18-33 Kids
Prod. No. 574765
Product details
Plate dispenser KidsMade of corrosion-resistant stainless steel ,
unheated
Square plate tubes
Capacity: Approx. 120 plates
round: dia.18-33 cm
rectangular: max. 28 x 28 cm
basic model 382470
Added to Your Shopping Cart
| Stacking height with hooded | 650 Millimeter |
| Stacking height without hooded | 635 Millimeter |
| Exterior dimension height | 880 Millimeter |
| Electrical | No |
| Supports/ledges | No |
| Exterior dimensions depth | 520 Millimeter |
| Exterior dimensions width | 990 Millimeter |
| Weight | 52 Kilogram |
| Material | Stainless steel |
| Product group | Dispensers |
| Bumper rail | Corner guards |
| Castor model | 2 steering and 2 steering castors with brakes, diameter 125mm corrosion-resistant according to DIN 18867-8, made of plastic |
| Packaging | Standard packaging |
Use & Operating Manuals (11)
Declarations of Conformity (1)
Revit-Data (1)
Tender specifications (3)
Customer Information Drawings (3)
|
382356 |
Frame 600
(valid from 09/10/2018)
|
2 Each | |
|
374317 |

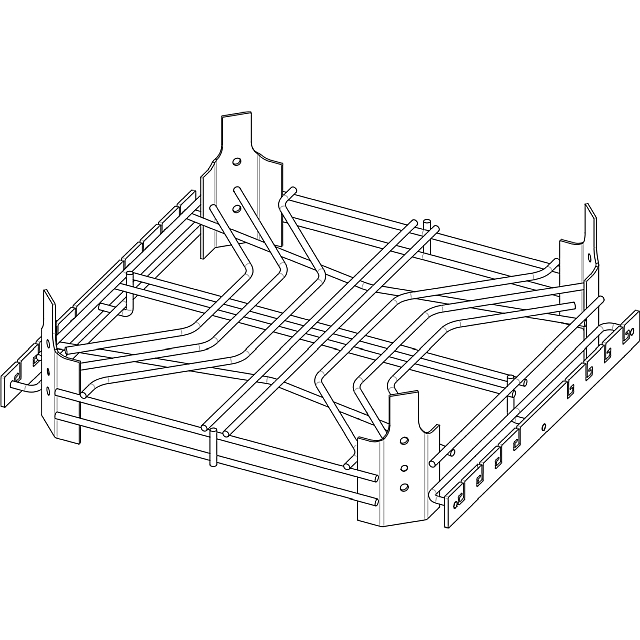

Basket TS
(valid from 07/27/2020)
|
1 Each | |
|
374337 |
Guide piece
(valid from 07/27/2020)
|
4 Each | |
|
382353 |
Guidance rod frame 600 high
(valid from 07/27/2020)
|
4 Each | |
|
374267 |
Tension spring 5GR
(valid from 07/27/2020)
|
8 Each | |
|
374268 |
Tension spring 10GR
(valid from 07/27/2020)
|
8 Each | |
|
374155 |
Tube D28x1,0-320
(valid from 09/10/2018)
|
1 Each | |
|
372911 |
body for push handle holder
(valid from 09/10/2018)
|
1 Each | |
|
|
372912 |
Cover push handle holder right, logo
(valid from 09/10/2018)
|
1 Each | |
|
372913 |
Cover push handle holder left, logo
(valid from 09/10/2018)
|
1 Each | |
|
386501 |
Swivel castor 125 lock., DIN-PL (gray)
(valid from 08/24/2022)
|
2 Each | |
|
386502 |
Swivel castor 125, DIN-PL, (gray)
(valid from 08/24/2022)
|
2 Each | |
|
374069 |
Corner guard bottom part
(valid from 02/28/2019)
|
4 Each | |
|
374064 |
Corner guard top part, closed
(valid from 02/28/2019)
|
4 Each |
