BC FS 3

Prod. No. 573974

Product details

BLANCO COOK front cooking station with removable placement shelf

For 3 BLANCO COOK table-top units
Device placement niche:
1211 x 648 x 300 mm
basic model 373485

Added to Your Shopping Cart

Specs

Operating instr. language	German English French
Electrical connection	1 x 400V 5x32A
Device placement niche	with device placement shelf
Packaging	on pallet
Assembly	1 set castors with galvanised steel housing, with black polyamide solid castors, 75 mm dia., 8 steering castors, 2 of which have brakes

Documents

Other documents (2)

Declarations of Conformity (1)

Tender specifications (2)

Spareparts

without prices

Image	Name	Quantity in device
Image	Code	375583	Name	Magnet QA-40x20x5-NI-N52 (valid from 01/14/2013)	Quantity in device	1 Each

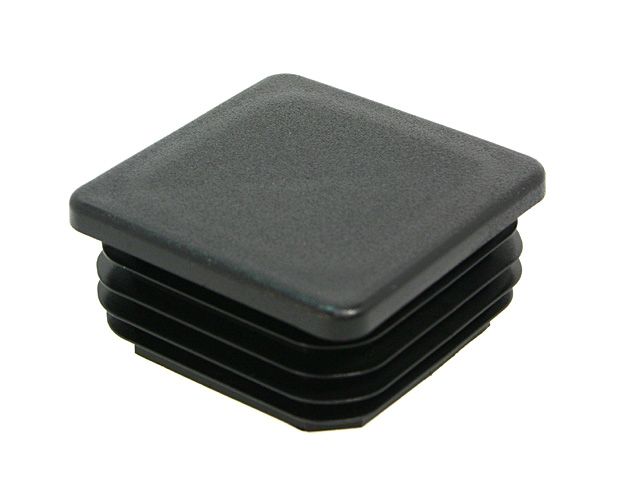

Image	Code	145793	Name	PLUG, 40 X 40 POLY. BLACK (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	105673	Name	lip DA 200-10 (valid from 07/16/2013)	Quantity in device	3 Each

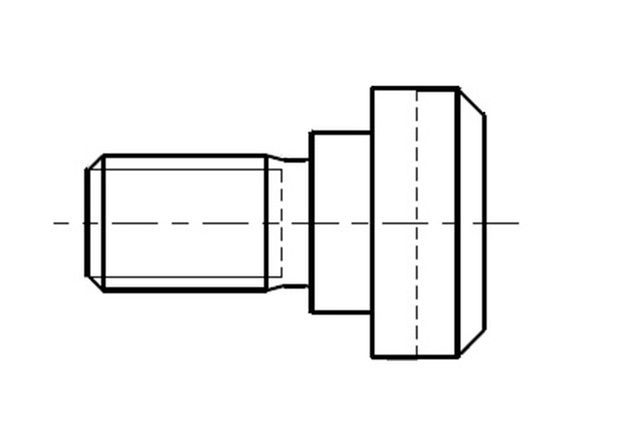

Image	Code	375549	Name	Stop screw M6 x 10 (valid from 01/14/2013)	Quantity in device	9 Each
Image	Code	385096	Name	Seal 9x5,5 black (valid from 02/05/2020)	Quantity in device	1 Meter

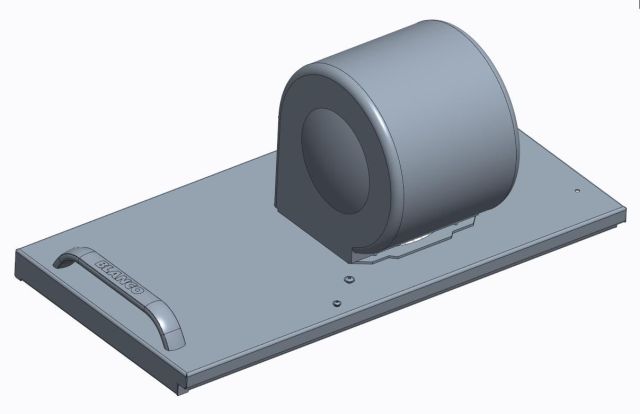

Image	Code	716284	Name	Retaining plate left for fan cpl. (valid from 08/22/2024)	Quantity in device	1 Each
Image	Code	106820	Name	Radial fan Typ Papst D2E146-HT79-32 (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	106852	Name	Protective grid cable side (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	106853	Name	Protective grid on opposite side (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	606279	Name	Grip (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	106891	Name	seal for ABL electrical outlets (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	106895	Name	label "Don't spray with water" (valid from 01/14/2013)	Quantity in device	2 Each

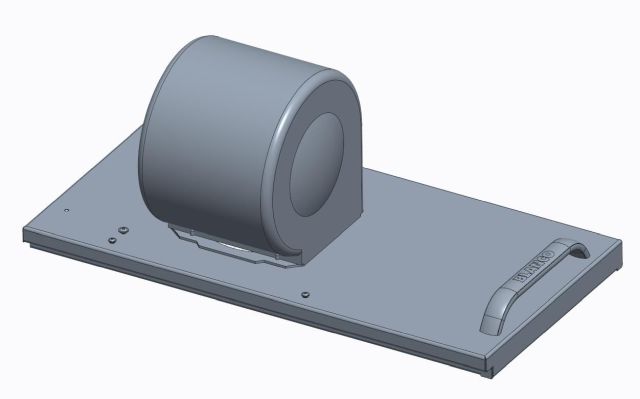

Image	Code	716285	Name	Retaining plate right for fan cpl. (valid from 08/22/2024)	Quantity in device	1 Each

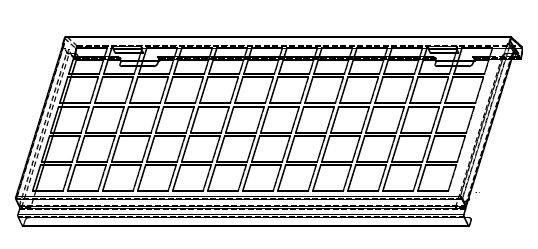

Image	Code	375689	Name	Filter holder side box (valid from 01/14/2013)	Quantity in device	2 Each

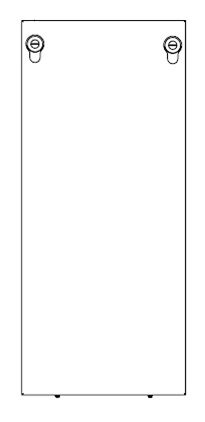

Image	Code	382738	Name	Revision panel cpl. with lock (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	342731	Name	Gasket profile-5134 gray MP (valid from 03/06/2013)	Quantity in device	2.1 Meter
Image	Code	375584	Name	fastening complete BC FS (valid from 01/14/2013)	Quantity in device	4 Each
Image	Code	376314	Name	open handhold pa black (valid from 03/18/2013)	Quantity in device	4 Each

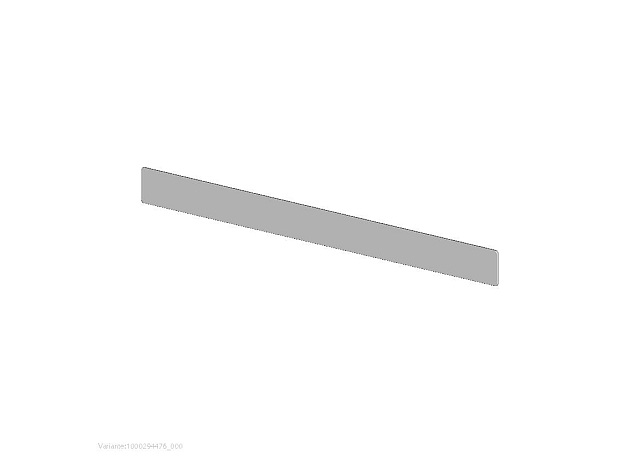

Image	Code	375556	Name	Splash guard ESG BC FS 3 (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	107670	Name	safety socket swiss version T25 (valid from 01/14/2013)	Quantity in device	2 Each

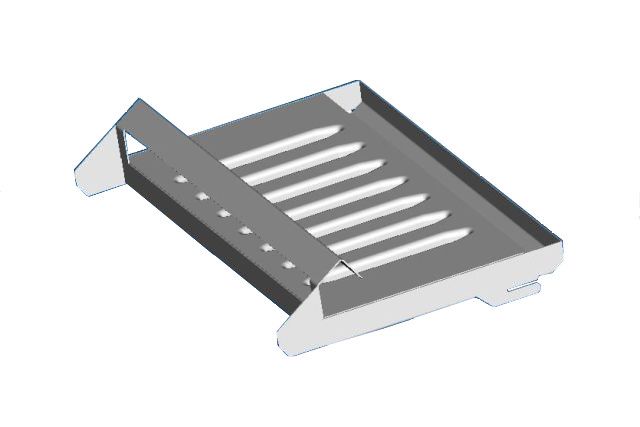

Image	Code	380657	Name	Filter cpl. for BC FS (valid from 01/14/2013)	Quantity in device	6 Each
Image	Code	107554	Name	Socket Typ 1661060 (valid from 01/14/2013)	Quantity in device	3 Each
Image	Code	107716	Name	Socket outlet protective contact-black (valid from 05/03/2022)	Quantity in device	1 Each

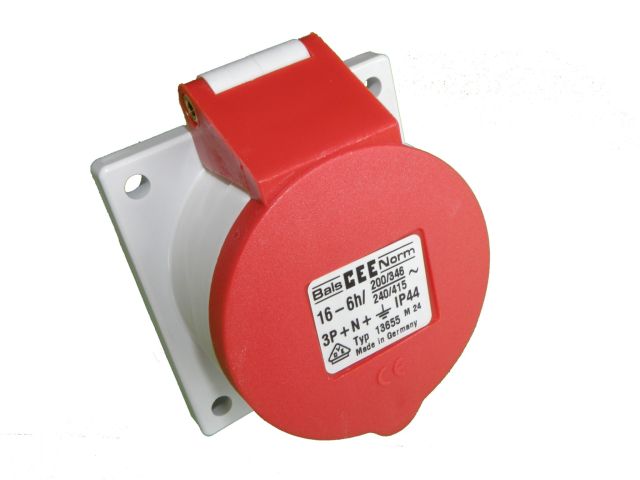

Image	Code	106865	Name	socket CEE 5x16A (valid from 01/14/2013)	Quantity in device	3 Each
Image	Code	107507	Name	Socket Israel 250V (valid from 04/11/2017)	Quantity in device	3 Each
Image	Code	106874	Name	Connecting cable H07RN-F 5x4mm² /4,5m (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	106708	Name	magnetic switch MK4-1A75-C-300W (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	107141	Name	Installation contactor ESB40-40-230AC/DC (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	107142	Name	Circuit breaker ABB S 201-B 16A (valid from 01/14/2013)	Quantity in device	9 Each
Image	Code	107143	Name	Circuit breaker ABB S 201-B 10A (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	107184	Name	ECB-terminal 741PE (valid from 01/14/2013)	Quantity in device	1 Each
Image	Code	107180	Name	Mains supply terminal 5 pole 25mm² (valid from 01/14/2013)	Quantity in device	1 Each

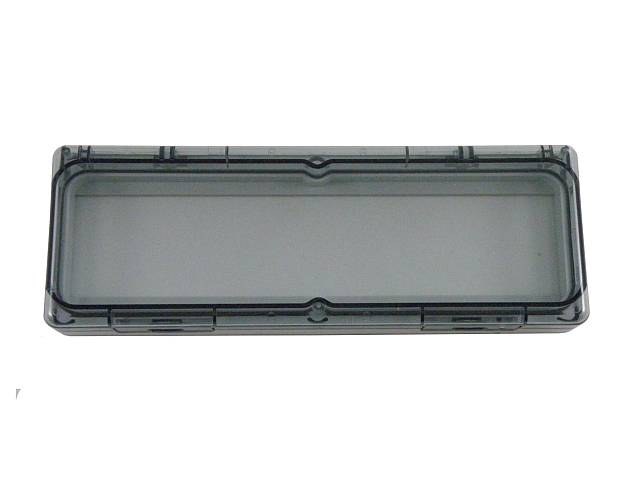

Image	Code	107199	Name	top-hung window KF 12 (IP65) (valid from 01/14/2013)	Quantity in device	2 Each

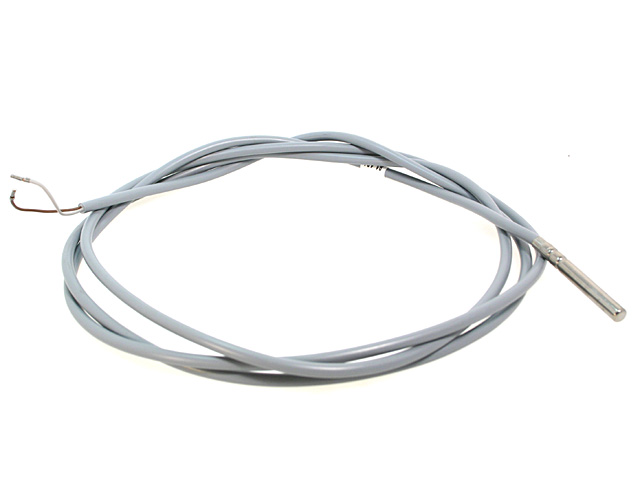

Image	Code	149563	Name	PTC sensor StörkTronic TF-PTC No.195040 (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	107493	Name	Control unit BC FS x.1 (valid from 08/21/2017)	Quantity in device	1 Each
Image	Code	375574	Name	Sealing frame for control unit BS FS (valid from 04/02/2013)	Quantity in device	1 Each
Image	Code	106309	Name	SkinTop cable screw jnt., Nut M12 PVC (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	106302	Name	Screwed cable gland, M12 PVC black (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	107210	Name	charcoal absorber FFC145.250mm (valid from 01/14/2013)	Quantity in device	16 Each

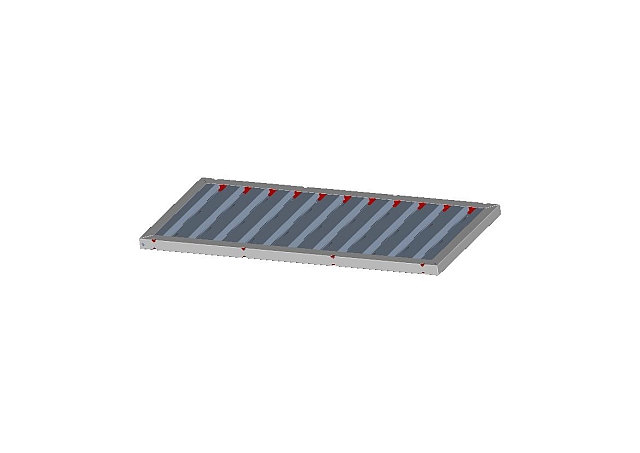

Image	Code	107212	Name	flame barrier FL INOX 260x600x20 (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	107213	Name	synthetic filter 595 x 235 x 20 mm (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	106896	Name	label "Unplug before opening" (valid from 01/14/2013)	Quantity in device	2 Each
Image	Code	106311	Name	Hexagon nut M20x1.5 (plastic) (valid from 06/10/2013)	Quantity in device	4 Each

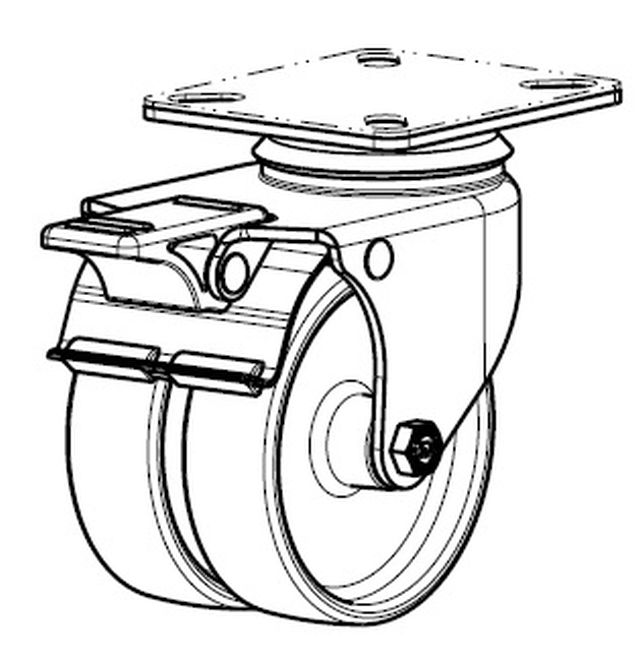

Image	Code	370687	Name	Cast. whl. double 75 lock. plate 77x67 (valid from 01/14/2013)	Quantity in device	2 Each

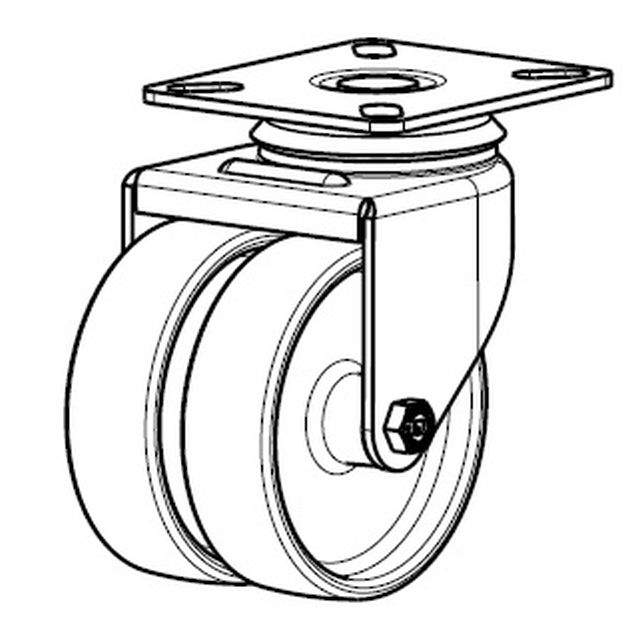

Image	Code	370688	Name	Cast. whl. double 75 plate 77x67 (valid from 01/14/2013)	Quantity in device	6 Each
