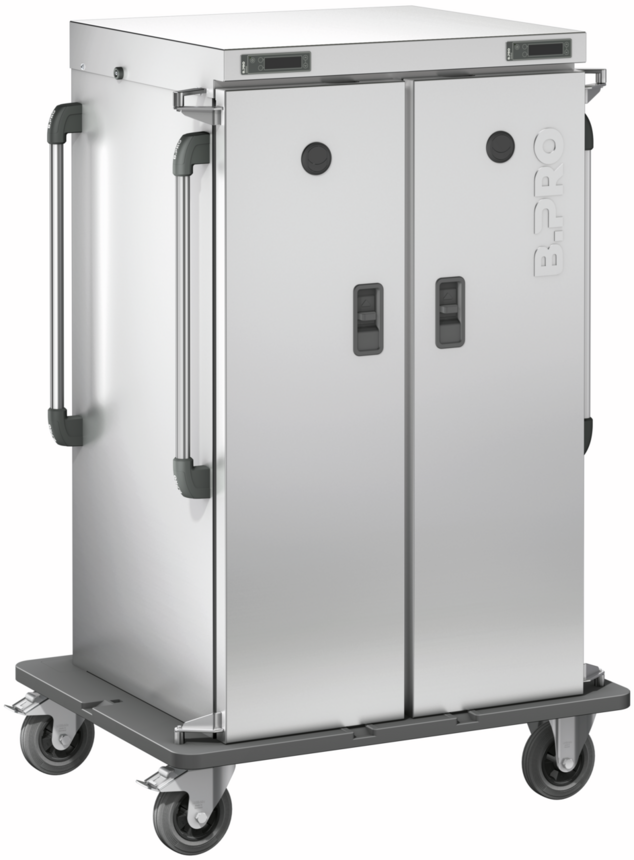

BPT E 2 x 30 duo H/H
BPT E 2 x 30 duo H/H
Prod. No. 575207
Product details
B.PROTHERM E 2 x 30 x 1/1 duo heated/heated
B.PROTHERM E food transport container 1/1, convection-heated
Made of corrosion-resistant steel, with hinged doors, mobile.
2 x 30 pairs of support ledges
Space between ledges: 38.3 mm
left compartment: convection-heated,
right compartment: convection-heated,
temperature range adjustable between +30 °C and +95 °C.
Mains frequency: 50/60 Hz

Base model: 386612

Spareparts

Image Code Name Quantity in device
Insert 386882
Insert
(valid from 02/16/2022)
 2 Each
Mounting bracket 386752
Mounting bracket
(valid from 02/16/2022)
 2 Each
Corpus hinge top right 386649
Corpus hinge top right
(valid from 02/16/2022)
 1 Each
Rubber buffer D25xh12-d5 374840
Rubber buffer D25xh12-d5
(valid from 02/16/2022)
 2 Each
Tube D28x1 L=586,4 386786
Tube D28x1 L=586,4
(valid from 02/16/2022)
 1 Each
body for push handle holder 372911
body for push handle holder
(valid from 02/16/2022)
 2 Each
Cover push handle holder left, logo 372913
Cover push handle holder left, logo
(valid from 02/16/2022)
 1 Each
Cover push handle holder right, logo 372912
Cover push handle holder right, logo
(valid from 02/16/2022)
 1 Each
Hinge 386652
Hinge
(valid from 02/16/2022)
 2 Each
washer A 8.4 DIN 125 brass 83031
washer A 8.4 DIN 125 brass
(valid from 02/16/2022)
 2 Each
Warm module cpl. 950 W 387165
Warm module cpl. 950 W
(valid from 02/16/2022)
 2 Each
Radial fan R2A 150-AC01-21 105913
Radial fan R2A 150-AC01-21
(valid from 02/16/2022)
 1 Each
Tubular heater 950W 20.43035.010 107672
Tubular heater 950W 20.43035.010
(valid from 02/16/2022)
 1 Each
Temperature sensor PT1000_B.PROTHERM 107694
Temperature sensor PT1000_B.PROTHERM
(valid from 02/16/2022)
 1 Each
Safety temperature limiter 135 °C 105805
Safety temperature limiter 135 °C
(valid from 02/16/2022)
 1 Each
mold without lock 386579
mold without lock
(valid from 02/16/2022)
 1 Each
Push Rod 30 386766
Push Rod 30
(valid from 02/16/2022)
 1 Each
Spring cpl. 386771
Spring cpl.
(valid from 02/16/2022)
 1 Each
Grip 386565
Grip
(valid from 02/16/2022)
 1 Each
Cover 386562
Cover
(valid from 02/16/2022)
 1 Each
Bushing 389058
Bushing
(valid from 02/16/2022)
 1 Each
Pressure spring VD-180-07 377734
Pressure spring VD-180-07
(valid from 02/16/2022)
 1 Each
Seal 386778
Seal
(valid from 02/16/2022)
 3.188 Meter
Ventilation flap cpl. 389005
Ventilation flap cpl.
(valid from 08/09/2024)
 1 Each
O-RING, 67.00 X 1.50 EPDM70 365428
O-RING, 67.00 X 1.50 EPDM70
(valid from 02/16/2022)
 1 Each
Vent mounting ring 386580
Vent mounting ring
(valid from 02/16/2022)
 1 Each
BPT Display 107664
BPT Display
(valid from 02/21/2022)
 2 Each
Display Foil Atlas 386476
Display Foil Atlas
(valid from 02/21/2022)
 2 Each
Plug holder universal 369654
Plug holder universal
(valid from 02/21/2022)
 1 Each
plastic cover ring for plug holder 117766
plastic cover ring for plug holder
(valid from 02/16/2022)
 1 Each
terminal block Wieland KL 24/3 SL 105429
terminal block Wieland KL 24/3 SL
(valid from 02/21/2022)
 2 Each
BPT Power PCB 107722
BPT Power PCB
(valid from 02/21/2022)
 2 Each
Cable gland M20x1.5 black 106304
Cable gland M20x1.5 black
(valid from 02/21/2022)
 1 Each
Hexagon nut M20x1.5 (plastic) 106311
Hexagon nut M20x1.5 (plastic)
(valid from 02/21/2022)
 1 Each
magnetic switch MK4-1A75-C-300W 106708
magnetic switch MK4-1A75-C-300W
(valid from 02/21/2022)
 2 Each
Decal equipotential bonding 107692
Decal equipotential bonding
(valid from 02/21/2022)
 1 Each
Spiral cabel Europe 3x1,5 qmm BL-570 107682
Spiral cabel Europe 3x1,5 qmm BL-570
(valid from 02/21/2022)
 1 Each
Castor wheel LE-VPP 160R-SG 373391
Castor wheel LE-VPP 160R-SG
(valid from 02/16/2022)
 2 Each
Castor wheel with brake LE-VPP160R-FI-SG 373392
Castor wheel with brake LE-VPP160R-FI-SG
(valid from 02/16/2022)
 2 Each

Specs

Ledge spacing 38.3 Millimeter
Exterior dimension height 1565 Millimeter
Electrical Yes
Number of supports/ledges 60 Pair
Hygiene type HS
Supports/ledges Yes
Exterior dimensions depth 821 Millimeter
Exterior dimensions width 1026 Millimeter
Weight 146 Kilogram
Temperature range to 95 °C
Temperature range from 30 °C
Heating/cooling technology active convection heating
Material Stainless steel
Product group B.PROTHERM stainless steel
Packaging Standard packaging
Castor models 1 set of castors 160 mm dia. with galvanised steel housing, with standard tyres, 4 steering castors, 2 of which have brakes
Hygienic type HS

Documents

Customer Information Drawings (3)
BPT E 2 x 30 duo H/H DXF
BPT E 2 x 30 duo H/H DWG
BPT E 2 x 30 duo H/H PDF
Declarations of Conformity (1)
CE - BPT E beheizt DE-EN PDF
Use & Operating Manuals (10)
BA BPT Warmgeräte -de- PDF
BA BPT Warmgeräte -en- PDF
BA BPT Warmgeräte -fr- PDF
BA BPT Warmgeräte -es- PDF
BA BPT Warmgeräte -nl- PDF
BA BPT Warmgeräte -cs- PDF
BA BPT Warmgeräte -ru- PDF
BA BPT Warmgeräte -hr- PDF
BA BPT Warmgeräte -slo- PDF
BA BPT Warmgeräte -kor- PDF
Tender specifications (5)
575207_LV_DE_BPT E 2 x 30 duo HH.docx DOCX
575207_LV_EN_BPT E 2 x 30 duo HH.docx DOCX
575207_LV_FR_BPT E 2 x 30 duo HH.docx DOCX
575207_LV_ES_BPT E 2 x 30 duo HH.docx DOCX
575207_LV_NL_BPT E 2 x 30 duo HH.docx DOCX
Revit-Data (1)
QF_BPRO_BPT E 2 x 30 duo H_H_575207.rfa RFA
