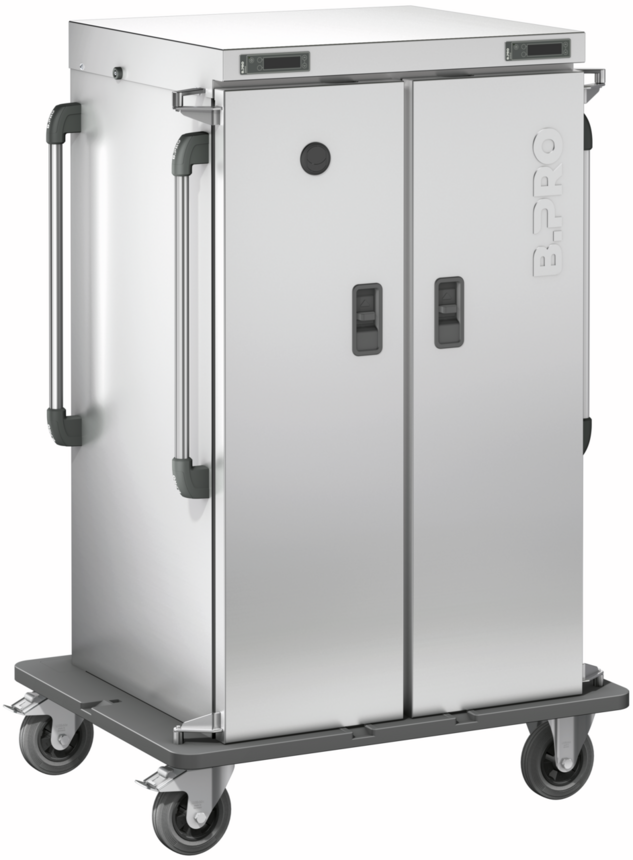

BPT E 2 x 30 (24) duo H/C
BPT E 2 x 30 (24) duo H/C
Prod. No. 575211
Product details
B.PROTHERM E 2 x 30 (24) x 1/1 duo heated/cooled
B.PROTHERM E food transport container 1/1, convection-heated/convection-
cooled
Made of corrosion-resistant steel, with hinged doors, mobile.left
compartment: convection-heated,
temperature range adjustable between +30 °C and +95 °C,
30 pairs of support ledgesright compartment: convection-cooled,
temperature range adjustable between +2 °C and +10 °C,
30 pairs of support ledges with 24 x 1/1 and 6 x 1/2
Refrigerant: propane R290.
Mains frequency: 50/60 Hz

Basic model: 386616

Spareparts

Image Code Name Quantity in device
Insert 386882
Insert
(valid from 05/11/2022)
 2 Each
Mounting bracket 386752
Mounting bracket
(valid from 05/11/2022)
 2 Each
Corpus hinge top right 386649
Corpus hinge top right
(valid from 05/11/2022)
 1 Each
Filter 386724
Filter
(valid from 05/11/2022)
 1 Each
Rubber buffer D25xh12-d5 374840
Rubber buffer D25xh12-d5
(valid from 05/11/2022)
 2 Each
Tube D28x1 L=586,4 386786
Tube D28x1 L=586,4
(valid from 05/11/2022)
 1 Each
body for push handle holder 372911
body for push handle holder
(valid from 05/11/2022)
 2 Each
Cover push handle holder left, logo 372913
Cover push handle holder left, logo
(valid from 05/11/2022)
 1 Each
Cover push handle holder right, logo 372912
Cover push handle holder right, logo
(valid from 05/11/2022)
 1 Each
Hinge 386652
Hinge
(valid from 05/11/2022)
 2 Each
washer A 8.4 DIN 125 brass 83031
washer A 8.4 DIN 125 brass
(valid from 05/11/2022)
 2 Each
Warm module cpl. 950 W 387165
Warm module cpl. 950 W
(valid from 05/11/2022)
 1 Each
Radial Fan R2K150/0020-4218 107469
Radial Fan R2K150/0020-4218
(valid from 05/11/2022)
 1 Each
Tubular heater 950W 20.43035.010 107672
Tubular heater 950W 20.43035.010
(valid from 05/11/2022)
 1 Each
Temperature sensor PT1000_B.PROTHERM 107694
Temperature sensor PT1000_B.PROTHERM
(valid from 05/11/2022)
 1 Each
Safety temperature limiter 135 °C 105805
Safety temperature limiter 135 °C
(valid from 05/11/2022)
 1 Each
Cold module 1/1 149766
Cold module 1/1
(valid from 05/11/2022)
 1 Each
Axial fan 4656 ZWU 230VAC 149200
Axial fan 4656 ZWU 230VAC
(valid from 07/06/2022)
 1 Each
Condenser Fan of Cooling Modul with R290 134246
Condenser Fan of Cooling Modul with R290
(valid from 03/19/2024)
 1 Each
Condenser Fan of Cooling Modul with R290 149785
Condenser Fan of Cooling Modul with R290
(valid from 07/06/2022)
 1 Each
Condensate pan cpl. 386715
Condensate pan cpl.
(valid from 05/11/2022)
 1 Each
mold without lock 386579
mold without lock
(valid from 05/11/2022)
 1 Each
Push Rod 30 386766
Push Rod 30
(valid from 05/11/2022)
 1 Each
Spring cpl. 386771
Spring cpl.
(valid from 05/11/2022)
 1 Each
Grip 386565
Grip
(valid from 05/11/2022)
 1 Each
Cover 386562
Cover
(valid from 05/11/2022)
 1 Each
Bushing 389058
Bushing
(valid from 05/11/2022)
 1 Each
Pressure spring VD-180-07 377734
Pressure spring VD-180-07
(valid from 05/11/2022)
 1 Each
Seal 386778
Seal
(valid from 05/11/2022)
 3.188 Meter
Ventilation flap cpl. 389005
Ventilation flap cpl.
(valid from 08/09/2024)
 1 Each
O-RING, 67.00 X 1.50 EPDM70 365428
O-RING, 67.00 X 1.50 EPDM70
(valid from 05/11/2022)
 1 Each
Vent mounting ring 386580
Vent mounting ring
(valid from 05/11/2022)
 1 Each
BPT Display 107664
BPT Display
(valid from 05/16/2022)
 2 Each
Display Foil Atlas 386476
Display Foil Atlas
(valid from 05/16/2022)
 2 Each
Plug holder universal 369654
Plug holder universal
(valid from 05/16/2022)
 1 Each
plastic cover ring for plug holder 117766
plastic cover ring for plug holder
(valid from 05/11/2022)
 1 Each
terminal block Wieland KL 24/3 SL 105429
terminal block Wieland KL 24/3 SL
(valid from 05/16/2022)
 2 Each
BPT Power PCB 107722
BPT Power PCB
(valid from 05/16/2022)
 2 Each
Cable gland M20x1.5 black 106304
Cable gland M20x1.5 black
(valid from 05/16/2022)
 1 Each
Hexagon nut M20x1.5 (plastic) 106311
Hexagon nut M20x1.5 (plastic)
(valid from 05/16/2022)
 1 Each
magnetic switch MK4-1A75-C-300W 106708
magnetic switch MK4-1A75-C-300W
(valid from 05/16/2022)
 2 Each
Decal equipotential bonding 107692
Decal equipotential bonding
(valid from 05/16/2022)
 1 Each
Spiral cabel Europe 3x1,5 qmm BL-570 107682
Spiral cabel Europe 3x1,5 qmm BL-570
(valid from 05/23/2022)
 1 Each
Castor wheel LE-VPP 160R-SG 373391
Castor wheel LE-VPP 160R-SG
(valid from 05/11/2022)
 2 Each
Castor wheel with brake LE-VPP160R-FI-SG 373392
Castor wheel with brake LE-VPP160R-FI-SG
(valid from 05/11/2022)
 2 Each

Specs

Exterior dimension height 1565 Millimeter
Electrical Yes
Hygiene type HS
Supports/ledges Yes
Exterior dimensions depth 821 Millimeter
Exterior dimensions width 1026 Millimeter
Material Stainless steel
Product group B.PROTHERM stainless steel
Hygienic type HS
Castor models 1 set of castors 160 mm dia. with galvanised steel housing, with standard tyres, 4 steering castors, 2 of which have brakes
Packaging Standard packaging

Documents

Other documents (1)
Sicherheitsdatenblatt für Transport DE PDF
Customer Information Drawings (1)
BPT E 2 x 30 (24) duo H/C PDF
Use & Operating Manuals (6)
BA BPT Warm-Kaltgeräte -de- PDF
BA BPT Warm-Kaltgeräte -en- PDF
BA BPT Warm-Kaltgeräte -fr- PDF
BA BPT Warm-Kaltgeräte -es- PDF
BA BPT Warm-Kaltgeräte -nl- PDF
BA BPT Warm-Kaltgeräte -cs- PDF
Tender specifications (6)
575211_LV_EN_BPT E 2 x 30 (24) duo HC.docx DOCX
575211_LV_DE_BPT E 2 x 30 (24) duo HC.docx DOCX
575211_LV_FR_BPT E 2 x 30 (24) duo HC.docx DOCX
575211_LV_IT_BPT E 2 x 30 (24) duo HC.docx DOCX
575211_LV_ES_BPT E 2 x 30 (24) duo HC.docx DOCX
575211_LV_NL_BPT E 2 x 30 (24) duo HC.docx DOCX
Revit-Data (1)
QF_BPRO_BPT E 2 x 30_24 duo H_C_575211.rfa RFA
