BPT E 2 x 16 (10) combi H/C banquet
Prod. No. 575217
Product details

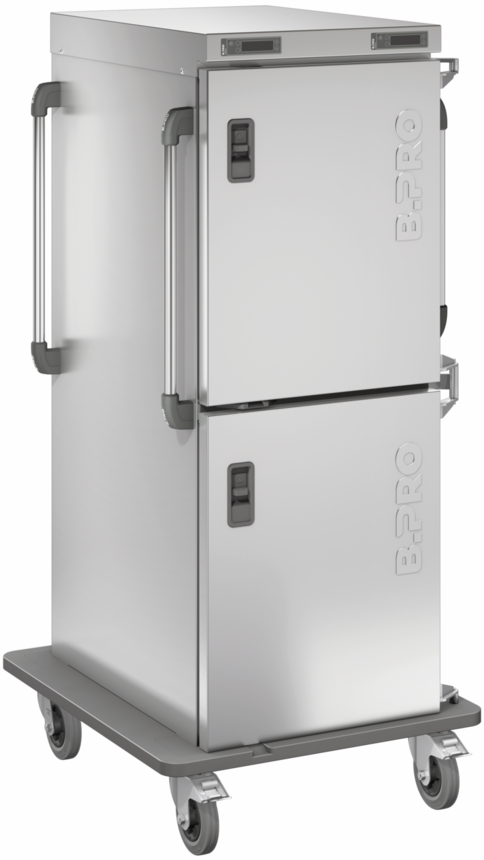

B.PROTHERM E 2 x 16 (10) x 2/1 combi heated/cooled banquetB.PROTHERM E food transport container 2/1, convection-heated/convection-
cooled
Made of corrosion-resistant steel, with hinged doors, mobile.upper
compartment: convection-heated,
temperature range adjustable between +30 °C and +95 °C
16 pairs of support ledgeslower compartment: convection-cooled,
temperature range adjustable between +2 °C and +10 °C
16 pairs of support ledges with 10 x 2/1 and 6 x 1/1
Refrigerant: propane R290.
Mains frequency: 50/60 Hz
Basic model: 386622
Spareparts
| Image | Code | Name | Quantity in device |
|---|---|---|---|
|
388087 |
Insert
(valid from 05/17/2022)
|
1 Each |
|
388136 |
Mounting bracket 80°
(valid from 05/17/2022)
|
2 Each |
|
386649 |
Corpus hinge top right
(valid from 05/17/2022)
|
1 Each |
|
105108 |
Edge protection 1-2mm black
(valid from 05/17/2022)
|
0.48 Meter |
|
386724 |
Filter
(valid from 05/17/2022)
|
1 Each |
|
387488 |
Cover cap
(valid from 05/17/2022)
|
1 Each |
|
284644 |
magnet KR-27-16-05-N
(valid from 05/17/2022)
|
1 Each |
|
386786 |
Tube D28x1 L=586,4
(valid from 05/17/2022)
|
1 Each |
|
372911 |
body for push handle holder
(valid from 05/17/2022)
|
2 Each |
|
372913 |
Cover push handle holder left, logo
(valid from 05/17/2022)
|
1 Each |
|
372912 |
Cover push handle holder right, logo
(valid from 05/17/2022)
|
1 Each |
|
|
386652 |
Hinge
(valid from 05/17/2022)
|
1 Each |
|
83031 |
washer A 8.4 DIN 125 brass
(valid from 05/17/2022)
|
1 Each |
|
|
387418 |
Hinge cmpl.
(valid from 05/17/2022)
|
1 Each |
|
387411 |
Partition bar cpl.
(valid from 05/17/2022)
|
1 Each |
|
387165 |
Warm module cpl. 950 W
(valid from 05/17/2022)
|
1 Each |
|
107469 |
Radial Fan R2K150/0020-4218
(valid from 05/17/2022)
|
1 Each |
|
|
388233 |
Spring 6,9x8 VD_063H_20_1
(valid from 11/02/2022)
|
1 Each |
|
|
107672 |
Tubular heater 950W 20.43035.010
(valid from 05/17/2022)
|
1 Each |
|
107694 |
Temperature sensor PT1000_B.PROTHERM
(valid from 05/17/2022)
|
1 Each |
|
105805 |
Safety temperature limiter 135 °C
(valid from 05/17/2022)
|
1 Each |
|
149200 |
Axial fan 4656 ZWU 230VAC
(valid from 05/17/2022)
|
2 Each |
|
|
134246 |
Condenser Fan of Cooling Modul with R290
(valid from 03/19/2024)
|
1 Each |
|
149785 |
Condenser Fan of Cooling Modul with R290
(valid from 05/17/2022)
|
1 Each |
|
386716 |
Condensate pan cpl.
(valid from 05/17/2022)
|
1 Each |
|
386579 |
mold without lock
(valid from 05/17/2022)
|
1 Each |
|
|
388138 |
Knob cpl.
(valid from 05/17/2022)
|
1 Each |
|
386565 |
Grip
(valid from 05/17/2022)
|
1 Each |
|
377734 |
Pressure spring VD-180-07
(valid from 08/03/2022)
|
2 Each |
|
|
386562 |
Cover
(valid from 05/17/2022)
|
1 Each |
|
284700 |
magnet KV-25-25-13-N
(valid from 05/17/2022)
|
1 Each |
|
|
389058 |
Bushing
(valid from 05/17/2022)
|
1 Each |
|
386778 |
Seal
(valid from 05/17/2022)
|
2.509 Meter |
|
386547 |
Display Mount
(valid from 05/17/2022)
|
2 Each |
|
107664 |
BPT Display
(valid from 05/17/2022)
|
2 Each |
|
386476 |
Display Foil Atlas
(valid from 05/17/2022)
|
2 Each |
|
369654 |
Plug holder universal
(valid from 05/17/2022)
|
1 Each |
|
117766 |
plastic cover ring for plug holder
(valid from 05/17/2022)
|
1 Each |
|
105429 |
terminal block Wieland KL 24/3 SL
(valid from 05/17/2022)
|
2 Each |
|
107722 |
BPT Power PCB
(valid from 05/17/2022)
|
1 Each |
|
106304 |
Cable gland M20x1.5 black
(valid from 05/17/2022)
|
1 Each |
|
106311 |
Hexagon nut M20x1.5 (plastic)
(valid from 05/17/2022)
|
1 Each |
|
106708 |
magnetic switch MK4-1A75-C-300W
(valid from 05/17/2022)
|
2 Each |
|
107692 |
Decal equipotential bonding
(valid from 05/17/2022)
|
1 Each |
|
107682 |
Spiral cabel Europe 3x1,5 qmm BL-570
(valid from 05/23/2022)
|
1 Each |
|
373391 |
Castor wheel LE-VPP 160R-SG
(valid from 05/17/2022)
|
2 Each |
|
373392 |
Castor wheel with brake LE-VPP160R-FI-SG
(valid from 05/17/2022)
|
2 Each |
Specs
| Exterior dimension height | 1795 Millimeter |
| Electrical | Yes |
| Hygiene type | HS |
| Supports/ledges | Yes |
| Exterior dimensions depth | 941 Millimeter |
| Exterior dimensions width | 820 Millimeter |
| Material | Stainless steel |
| Product group | B.PROTHERM stainless steel |
| Hygienic type | HS |
| Castor models | 1 set of castors 160 mm dia. with galvanised steel housing, with standard tyres, 4 steering castors, 2 of which have brakes |
| Packaging | Standard packaging |
Documents
Other documents (1)
| Sicherheitsdatenblatt für Transport DE |
Customer Information Drawings (1)
| BPT E 2 x 16 (10) combi H/C banquet |
Use & Operating Manuals (6)
| BA BPT Warm-Kaltgeräte -de- | |
| BA BPT Warm-Kaltgeräte -en- | |
| BA BPT Warm-Kaltgeräte -fr- | |
| BA BPT Warm-Kaltgeräte -es- | |
| BA BPT Warm-Kaltgeräte -nl- | |
| BA BPT Warm-Kaltgeräte -cs- |
Tender specifications (6)
| 575217_LV_DE_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
| 575217_LV_EN_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
| 575217_LV_FR_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
| 575217_LV_IT_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
| 575217_LV_NL_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
| 575217_LV_ES_BPT E 2 x 16 (10) combi HC banquet.docx | DOCX |
Revit-Data (1)
| QF_BPRO_BPT E 2 x 16_10 combi H_C banquet_575217.rfa | RFA |
