Sample images
RWR-EP 23
Prod. No. 573962
Product details

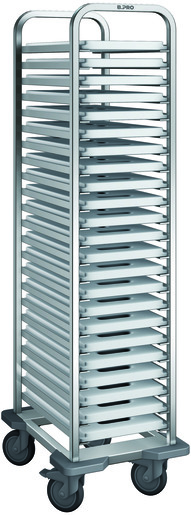

Shelf trolleys for eutectic plates
Support spacing: 23 pairs 58 mm
Capacity: 23 eutectic plates (lengthwise insertion)
Load capacity: 200 kg
Added to Your Shopping Cart
| Ledge spacing | 58 Millimeter |
| Exterior dimension height | 1675 Millimeter |
| Electrical | No |
| Number of supports/ledges | 23 Pair |
| Supports/ledges | Yes |
| Exterior dimensions depth | 619 Millimeter |
| Load-bearing capacity | 200 Kilogram |
| Exterior dimensions width | 464 Millimeter |
| Weight | 31 Kilogram |
| Shelf trolley capacity | 23 eutectic plates |
| Material | Stainless steel |
| Product group | Shelf trolleys |
Customer Information Drawings (3)
Tender specifications (4)
|
386502 |
Swivel castor 125, DIN-PL, (gray)
(valid from 08/24/2022)
|
2 Each | |
|
386501 |
Swivel castor 125 lock., DIN-PL (gray)
(valid from 08/24/2022)
|
2 Each | |
|
376812 |
Corner guard closed RAL7043
(valid from 03/18/2014)
|
4 Each | |
|
376371 |
Plug corner guard RAL 7043
(valid from 03/18/2014)
|
16 Each | |
|
146680 |
EXPAND. NUT 72.30.459 F. SHEET SCRW. 4.2
(valid from 08/16/2012)
|
16 Each |
