Sample images

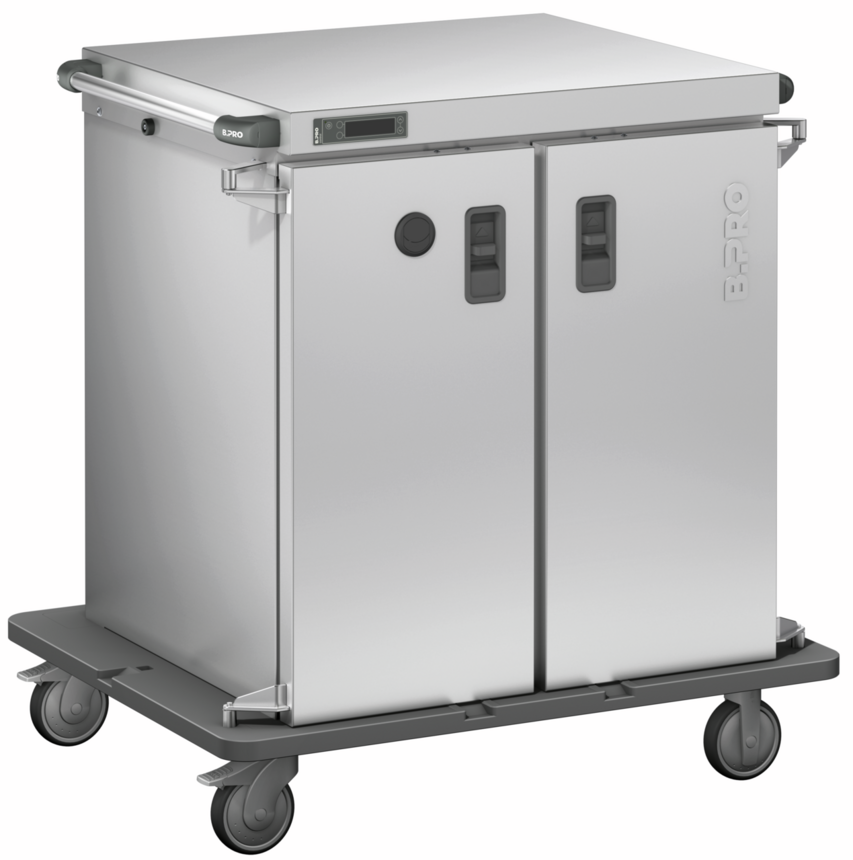

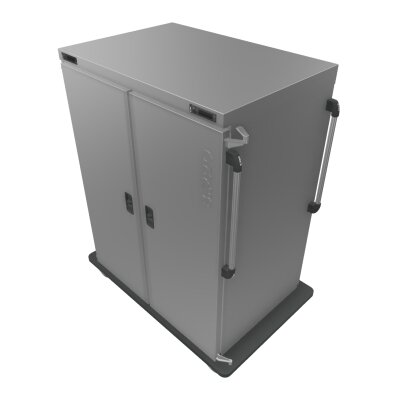

BPT E 2 x 18 duo H/N
Prod. No. 575209
Product details
B.PROTHERM E 2 x 18 x 1/1 duo heated/neutralB.PROTHERM E food transport container 1/1, convection-heated/neutral
Made of corrosion-resistant steel, with hinged doors, mobile.
2 x 18 pairs of support ledges
Space between ledges: 38.3 mm
left compartment: convection-heated,
temperature range adjustable between +30 °C and +95 °C.
right compartment: neutral
Mains frequency: 50/60 Hz
Basic model: 386614
Added to Your Shopping Cart
| Ledge spacing | 38.3 Millimeter |
| Exterior dimension height | 1072 Millimeter |
| Electrical | Yes |
| Number of supports/ledges | 36 Pair |
| Hygiene type | HS |
| Supports/ledges | Yes |
| Exterior dimensions depth | 821 Millimeter |
| Exterior dimensions width | 1026 Millimeter |
| Weight | 110 Kilogram |
| Temperature range to | 95 °C |
| Temperature range from | 30 °C |
| Heating/cooling technology | active convection heating |
| Material | Stainless steel |
| Product group | B.PROTHERM stainless steel |
| Castor model | Castor set, 125 mm dia., two steering castors with brake and two fixed castors in accordance with DIN 18867 Part 8 in PA model |
| Hygienic type | HS |
| Packaging | Standard packaging |
Customer Information Drawings (3)
Declarations of Conformity (1)
Use & Operating Manuals (10)
Tender specifications (5)
Revit-Data (1)
|
386882 |
Insert
(valid from 02/28/2022)
|
2 Each | |
|
386752 |
Mounting bracket
(valid from 02/28/2022)
|
2 Each | |
|
386649 |
Corpus hinge top right
(valid from 02/28/2022)
|
1 Each | |
|
374840 |
Rubber buffer D25xh12-d5
(valid from 02/28/2022)
|
2 Each | |
|
386786 |
Tube D28x1 L=586,4
(valid from 02/28/2022)
|
1 Each | |
|
372911 |
body for push handle holder
(valid from 02/28/2022)
|
2 Each | |
|
372913 |
Cover push handle holder left, logo
(valid from 02/28/2022)
|
1 Each | |
|
372912 |
Cover push handle holder right, logo
(valid from 02/28/2022)
|
1 Each | |
|
386652 |
Hinge
(valid from 02/28/2022)
|
2 Each | |
|
83031 |
washer A 8.4 DIN 125 brass
(valid from 02/28/2022)
|
2 Each | |
|
387303 |
Warm module cpl. 760W
(valid from 02/28/2022)
|
1 Each | |
|
105913 |
Radial fan R2A 150-AC01-21
(valid from 02/28/2022)
|
1 Each | |
|
107673 |
Tubular heater 760W 20.43035.000
(valid from 02/28/2022)
|
1 Each | |
|
107694 |
Temperature sensor PT1000_B.PROTHERM
(valid from 02/28/2022)
|
1 Each | |
|
105805 |
Safety temperature limiter 135 °C
(valid from 02/28/2022)
|
1 Each | |
|
386579 |
mold without lock
(valid from 02/28/2022)
|
1 Each | |
|
386771 |
Spring cpl.
(valid from 02/28/2022)
|
1 Each | |
|
386565 |
Grip
(valid from 02/28/2022)
|
1 Each | |
|
386562 |
Cover
(valid from 02/28/2022)
|
1 Each | |
|
389058 |
Bushing
(valid from 02/28/2022)
|
1 Each | |
|
377734 |
Pressure spring VD-180-07
(valid from 02/28/2022)
|
1 Each | |
|
386778 |
Seal
(valid from 02/28/2022)
|
1.808 Meter | |
|
389005 |
Ventilation flap cpl.
(valid from 08/09/2024)
|
1 Each | |
|
365428 |
O-RING, 67.00 X 1.50 EPDM70
(valid from 02/28/2022)
|
1 Each | |
|
386580 |
Vent mounting ring
(valid from 02/28/2022)
|
1 Each | |
|
107664 |
BPT Display
(valid from 02/28/2022)
|
1 Each | |
|
386476 |
Display Foil Atlas
(valid from 02/28/2022)
|
1 Each | |
|
369654 |
Plug holder universal
(valid from 02/28/2022)
|
1 Each | |
|
117766 |
plastic cover ring for plug holder
(valid from 02/28/2022)
|
1 Each | |
|
105429 |
terminal block Wieland KL 24/3 SL
(valid from 02/28/2022)
|
1 Each | |
|
107722 |
BPT Power PCB
(valid from 02/28/2022)
|
1 Each | |
|
106304 |
Cable gland M20x1.5 black
(valid from 02/28/2022)
|
1 Each | |
|
106311 |
Hexagon nut M20x1.5 (plastic)
(valid from 02/28/2022)
|
1 Each | |
|
106708 |
magnetic switch MK4-1A75-C-300W
(valid from 02/28/2022)
|
1 Each | |
|
107692 |
Decal equipotential bonding
(valid from 02/28/2022)
|
1 Each | |
|
107682 |
Spiral cabel Europe 3x1,5 qmm BL-570
(valid from 02/28/2022)
|
1 Each | |
|
386501 |
Swivel castor 125 lock., DIN-PL (gray)
(valid from 08/24/2022)
|
2 Each | |
|
382548 |
Fixed wheel 125 DIN-PL, PA (gray)
(valid from 02/28/2022)
|
2 Each |
