Sample images
CE-UK 53/53
Prod. No. 572431
Product details
Basket dispenser, cooledMade of corrosion-resistant stainless steel
Basket dimensions: 500 x 500/525 x 525 mm
Capacity: 5 baskets with 115 mm or 8 baskets of 75 mm height Stacking
height: with hooded cover: 680 mm without hooded cover: 54
basic model 364573
Added to Your Shopping Cart
| Stacking height with hooded | 680 Millimeter |
| Basket dimensions | 500 x 500 mm or 525 x 525 mm |
| Stacking height without hooded | 540 Millimeter |
| Exterior dimension height | 1065 Millimeter |
| Electrical | No |
| Dispenser capacity | 5 baskets of 115 mm or 8 baskets of 75 mm |
| Supports/ledges | No |
| Exterior dimensions depth | 1313 Millimeter |
| Exterior dimensions width | 790 Millimeter |
| Weight | 117 Kilogram |
| Heating/cooling technology | active convection cooling |
| Material | Stainless steel |
| Product group | Dispensers |
| Castor model | Castor set, 125 mm dia., two fixed castors and two steering castors with brake in accordance with DIN 18867 Part 8 in PA model |
| mains frequency | 50Hz |
| Bumper rail | Corner guards |
Other documents (2)
Declarations of Conformity (1)
Tender specifications (1)
|
144345 |
Ball catch IDEAL size III brass 70x13R
(valid from 02/16/2004)
|
2 Each | |
|

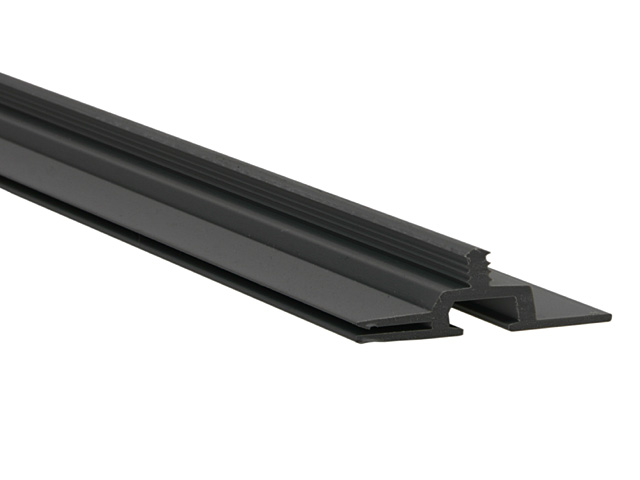

149284 |
PROFILE, INSERTION, GREY, NO. SH 6554
(valid from 02/16/2004)
|
0.656 Meter | |
|
376806 |
Shell type handle RAL 7043
(valid from 02/16/2004)
|
2 Each | |
|
274570 |
PLATE, UNDERLAY, FOR BALL CATCH
(valid from 02/16/2004)
|
2 Each | |
|

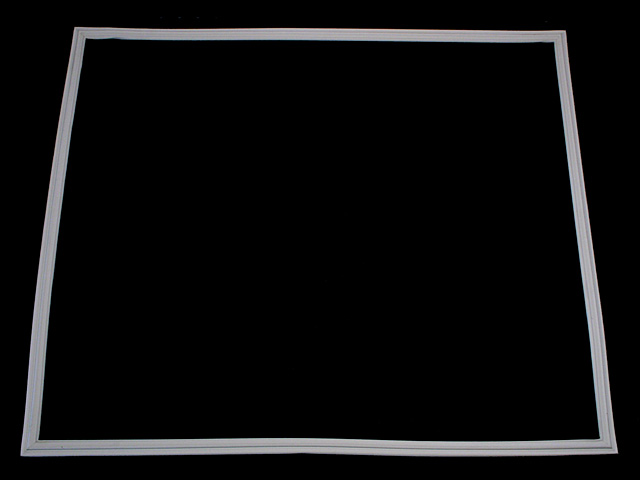

364595 |
Sealing frame cooled basket dispenser
(valid from 02/16/2004)
|
1 Each | |
|
376812 |
Corner guard closed RAL7043
(valid from 03/18/2014)
|
4 Each | |
|
376371 |
Plug corner guard RAL 7043
(valid from 03/18/2014)
|
16 Each | |
|
146680 |
EXPAND. NUT 72.30.459 F. SHEET SCRW. 4.2
(valid from 02/16/2004)
|
12 Each | |
|
146302 |
Tension spring 20GR
(valid from 02/16/2004)
|
12 Each | |
|
296813 |
Cover hood square 813
(valid from 02/16/2004)
|
1 Each | |
|
146285 |
BEARING,STEEL-
(valid from 02/16/2004)
|
4 Each | |
|

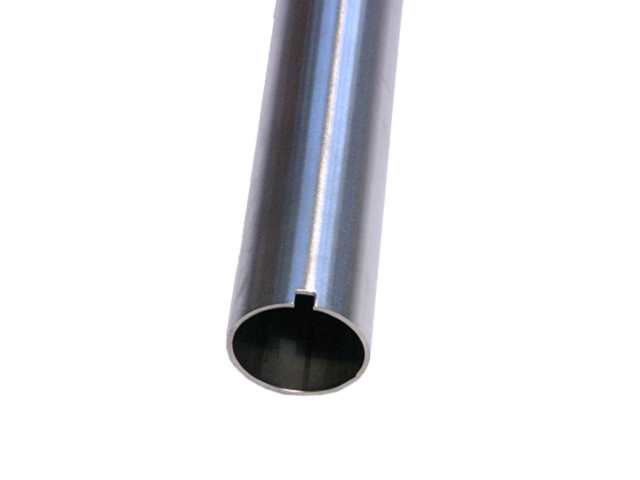

362755 |
Tube,32x1.5x642,fixed L,1.4301 GSL 220 K
(valid from 02/16/2004)
|
1 Each | |
|
376808 |
Push-handle holder right RAL7043
(valid from 03/17/2014)
|
1 Each | |
|
376809 |
Push-handle holder left RAL7043
(valid from 03/17/2014)
|
1 Each | |
|
376810 |
Cover for rght. push hand., grey RAL7043
(valid from 03/17/2014)
|
1 Each | |
|
376811 |
Cover for left push hand., grey RAL7043
(valid from 03/17/2014)
|
1 Each | |
|
386501 |
Swivel castor 125 lock., DIN-PL (gray)
(valid from 08/24/2022)
|
2 Each | |
|
382548 |
Fixed wheel 125 DIN-PL, PA (gray)
(valid from 03/01/2018)
|
2 Each | |
|

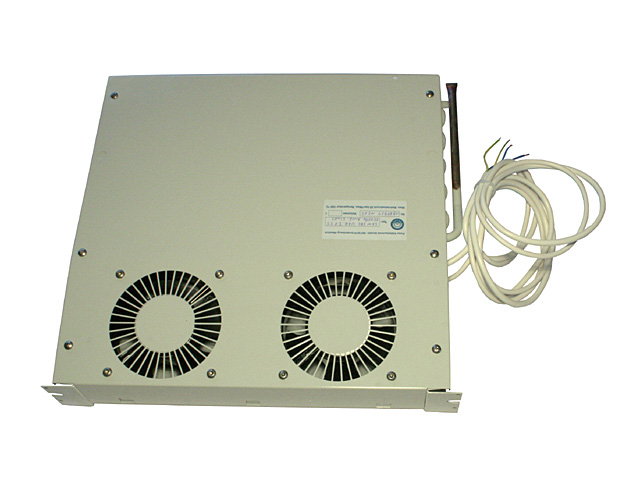

149577 |
Evaporator Polar SKW382 Lüfter IP54
(valid from 02/16/2004)
|
1 Each | |
|
106868 |
Power switch bipolar 16A B4MASK-series
(valid from 03/07/2008)
|
1 Each | |
|
105848 |
PTC sensor SN6P0150
(valid from 02/16/2004)
|
1 Each | |
|
134184 |
Digital controller CE-UK
(valid from 11/17/2022)
|
1 Each | |
|
149630 |
Ex. valve Danfoss TUA f. R134a < 12.2021
(valid from 09/25/2008)
|
1 Each | |
|
370252 |
Nozzle 1 f.TUA-valve 068U1031
(valid from 09/25/2008)
|
1 Each | |
|

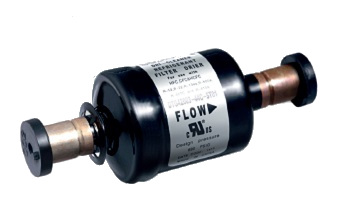

149754 |
Filter drier DTG-b05 061-901
(valid from 09/20/2021)
|
1 Each | |
|
105429 |
terminal block Wieland KL 24/3 SL
(valid from 02/16/2004)
|
1 Each | |
|
105494 |
terminal block Wieland KL 24/5 SL
(valid from 02/16/2004)
|
1 Each | |
|
107649 |
Spiral cable Europe 3x1,5 qmmst WG
(valid from 03/03/2021)
|
1 Each | |
|
106304 |
Cable gland M20x1.5 black
(valid from 02/16/2004)
|
1 Each | |
|
106311 |
Hexagon nut M20x1.5 (plastic)
(valid from 02/16/2004)
|
1 Each | |
|

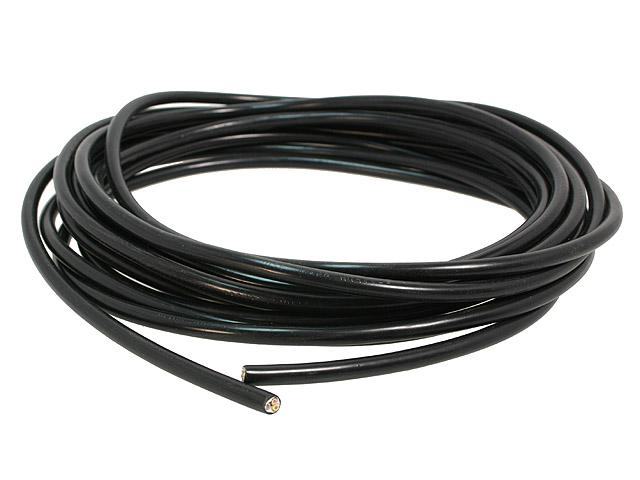

105316 |
CABLE-NYMHY-J 3X1,0 BLACK
(valid from 02/16/2004)
|
2 Meter | |
|
369654 |
Plug holder universal
(valid from 03/17/2008)
|
1 Each | |
|
117766 |
plastic cover ring for plug holder
(valid from 10/02/2008)
|
1 Each |
