Sample images
TTW 16-115 EEU
Prod. No. 575561
Product details
Tray transport trolley, single-walled
1 compartment

Capacity: 16 Euronorm or Gastronorm trays
insertion: crosswise
Space between ledges: 115 mm
basic model 390239
Specs
Insert Crosswise
Ledge spacing 115 Millimeter
Exterior dimension height 1365 Millimeter
Number of supports/ledges 16 Pair
Hygiene type HS
Supports/ledges Yes
Exterior dimensions depth 956 Millimeter
Tray transport trolley 16 Euronorm or Gastronorm trays
Exterior dimensions width 870 Millimeter
Weight 71 Kilogram
Material Stainless steel
Product group Tray transport trolleys
Hygienic type HS
Castor diameter 160 mm
Model Single-walled
Packaging Pallet standard packaging
Bumper rail Impact bars, all-round
Documents
Customer Information Drawings (1)
Use & Operating Manuals (6)
Tender specifications (2)
 without prices
Corpus hinge right cpl., passivated 350498
Corpus hinge right cpl., passivated
(valid from 03/13/2025)
 1 Each
Corner bumper bottom part 373056
Corner bumper bottom part
(valid from 03/13/2025)
 1 Each
Corner bumper both sides open 372932
Corner bumper both sides open
(valid from 03/13/2025)
 1 Each

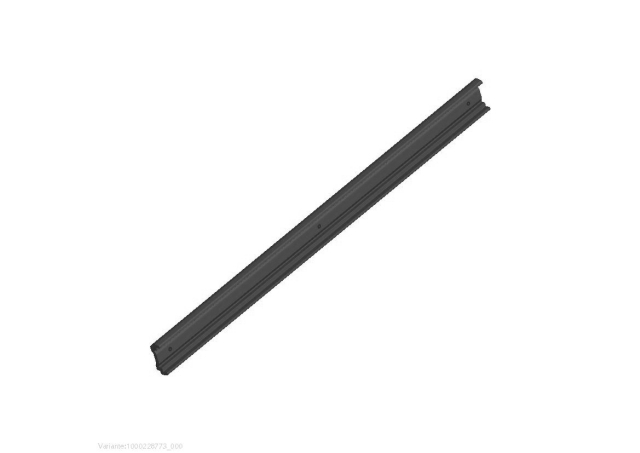

Holder for bumper profile L0 526.2 373290
Holder for bumper profile L0 526.2
(valid from 03/13/2025)
 1 Each
Side wall 2x20°, 1F-U 284987
Side wall 2x20°, 1F-U
(valid from 03/13/2025)
 1 Each
holder for bumper profile L0 632 373291
holder for bumper profile L0 632
(valid from 03/13/2025)
 1 Each
Shock profile 2x20°, U 284989
Shock profile 2x20°, U
(valid from 03/13/2025)
 1 Each
handle, not lockable grey (RAL7043) 284978
handle, not lockable grey (RAL7043)
(valid from 03/13/2025)
 1 Each
door seal TTW-Relaunch 291311
door seal TTW-Relaunch
(valid from 03/13/2025)
 3.148 Meter
Plastic locking 284998
Plastic locking
(valid from 03/13/2025)
 1 Each
Allen screw ISO 7380 M5x8 A2 m. Fl. 70914
Allen screw ISO 7380 M5x8 A2 m. Fl.
(valid from 03/13/2025)
 2 Each
Castor wheel with brake LE-VPP160R-FI-SG 373392
Castor wheel with brake LE-VPP160R-FI-SG
(valid from 03/13/2025)
 2 Each
FIXED WHEEL B-VPP 160R-SG 373393
FIXED WHEEL B-VPP 160R-SG
(valid from 03/13/2025)
 2 Each
WASHER,BACKING A 8,4DIN 9021 1.4301 83144
WASHER,BACKING A 8,4DIN 9021 1.4301
(valid from 03/13/2025)
 16 Each
Hexagon screw ISO 4017-M8x25 81098
Hexagon screw ISO 4017-M8x25
(valid from 03/13/2025)
 8 Each
body for push handle holder 372911
body for push handle holder
(valid from 03/13/2025)
 2 Each
Tube D28x1-489 Form A 350519
Tube D28x1-489 Form A
(valid from 03/13/2025)
 1 Each
Cover push handle holder right, logo 372912
Cover push handle holder right, logo
(valid from 03/13/2025)
 1 Each
Cover push handle holder left, logo 372913
Cover push handle holder left, logo
(valid from 03/13/2025)
 1 Each
washer A 8.4 DIN 125 brass 83031
washer A 8.4 DIN 125 brass
(valid from 03/13/2025)
 8 Each
door lock 2074-U111-IA 284979
door lock 2074-U111-IA
(valid from 03/13/2025)
 2 Each
Stop 355603
Stop
(valid from 03/13/2025)
 2 Each
SPRING,PRESSURE- VD 162 147251
SPRING,PRESSURE- VD 162
(valid from 03/13/2025)
 1 Each
