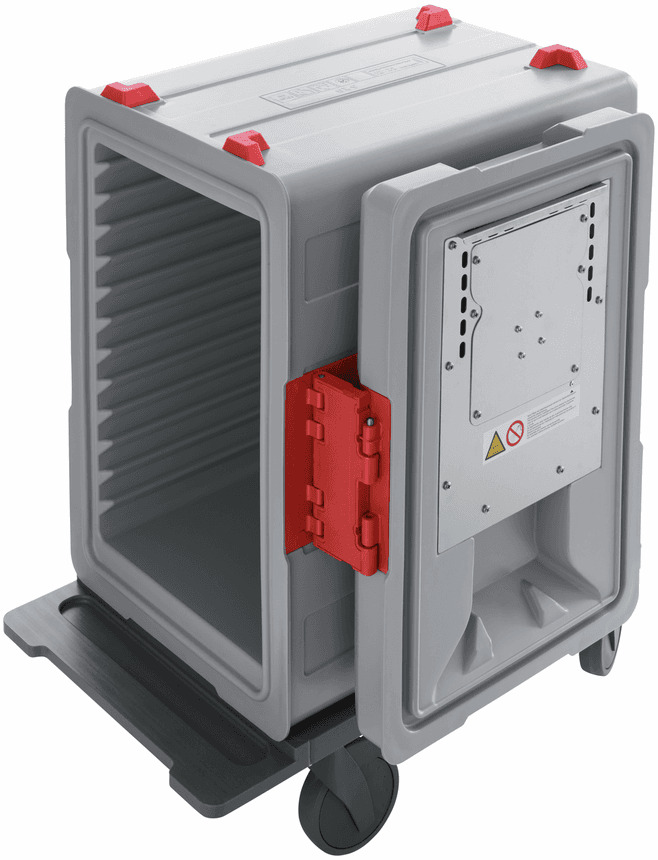

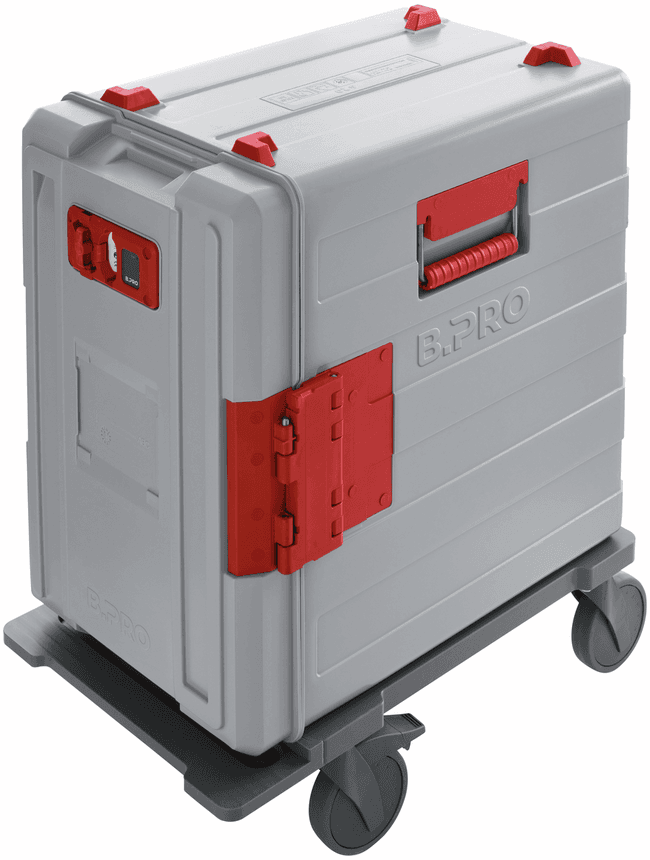

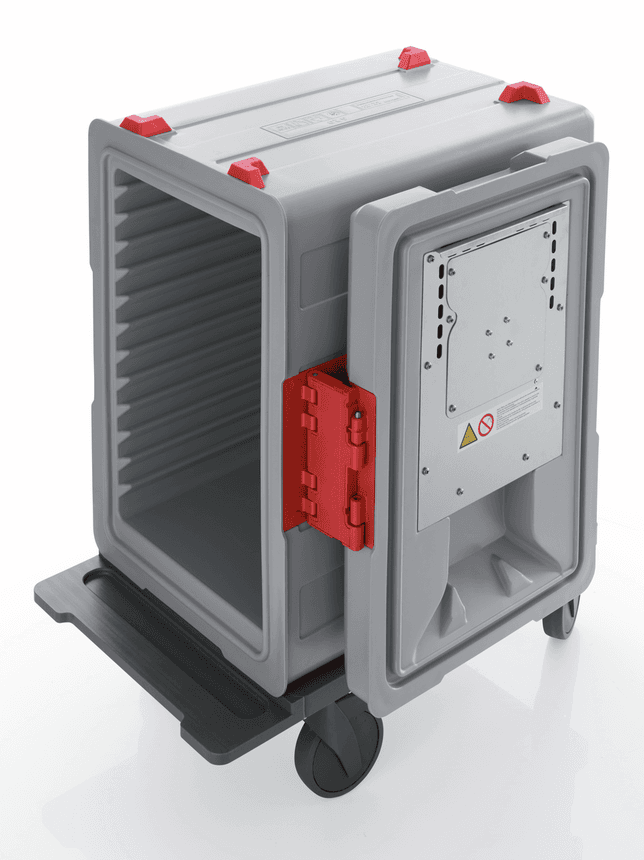

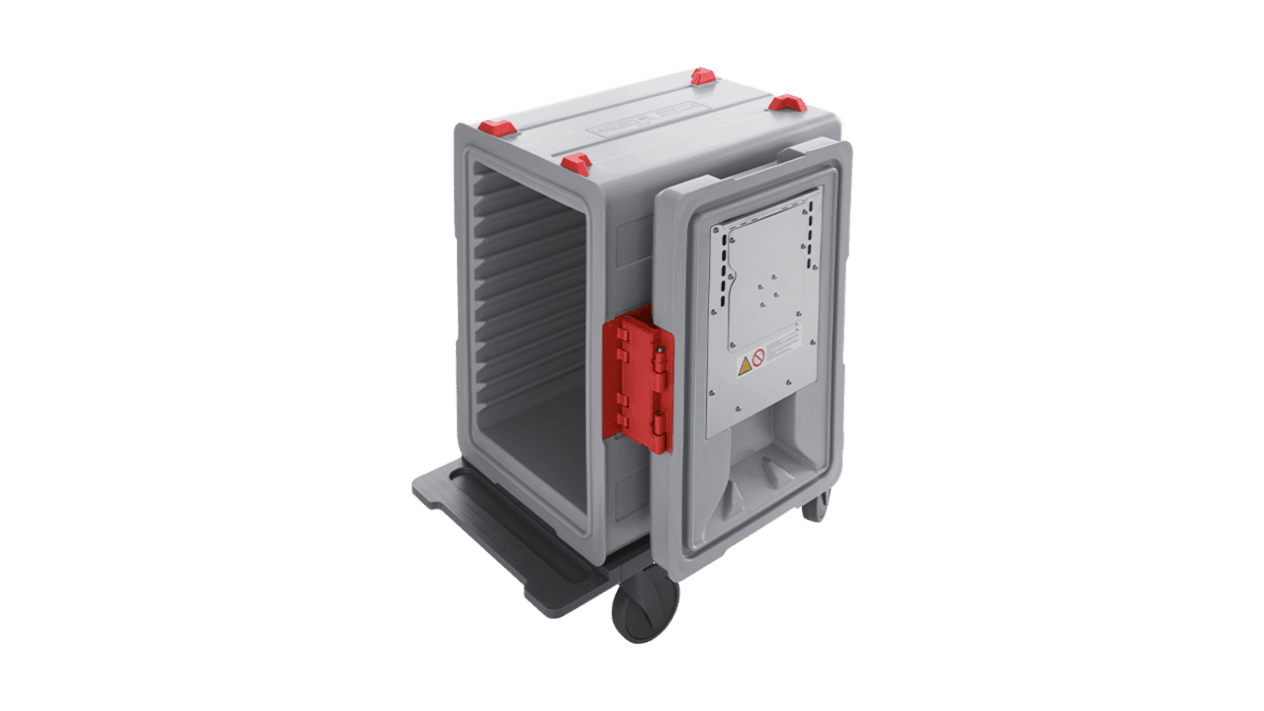

BPT 620 KBUH-F + condenser water trough

Order no. 574588

B.PROTHERM 620 KBUH-F with condensation water trough
Synthetic food transport container, convection-heated

Back to overview

Attributes

Exterior dimensions width	440 mm
Exterior dimension height	831 mm
Exterior dimensions length	747 mm
Exterior dimension unit	MM
Rated voltage	220-240 V
Rated power	0.2 kW
Weight	28.28 kg
Heating and cooling technology	Active convection heating
Capacity	2 x GN 1/1-200
Mains frequency	50/60 Hz
MatNo. (18 digits)	000000000000574588
Protection type	IPX4
No. of ledges	13
Space between ledges	39 mm
Temperature range	max. Temperatur +90°C
Temperature resistance	25 °C to 100 °C
Temperature resistance to	100 °C
Temperature resistance from	25 °C
Ambient temperature – operation	to
Colour	red
Type	Frontlader
Material(s)	Polypropylene (PP) Polyethylene (PE) Polyamide (PA) Stainless Steel 1.4301 Stainless Steel 1.4016
Volume	0.273
Volume unit (capacity)	M3
Heat emission latent	30 W
Heat emission sensitive	14 W

Brochures

Declaration of conformity

Advantages

IPX 4 protection against splashed water
VDE-GS tested
Mobile food transport container
recyclable
Operating mode indicator
Heater with integrated overheating protection
Patented door hinge (can only be removed in predefined position)
Handle at upper left in door for easy movement and optimal handling of the container
With condensation water collecting trough to prevent the danger of slipping and injuries
