575217 BPT E 2 x 16 10 combi H_C banquet.png

386622_BPT-E-2x16_10_combi-H-C_banquet_web.psd

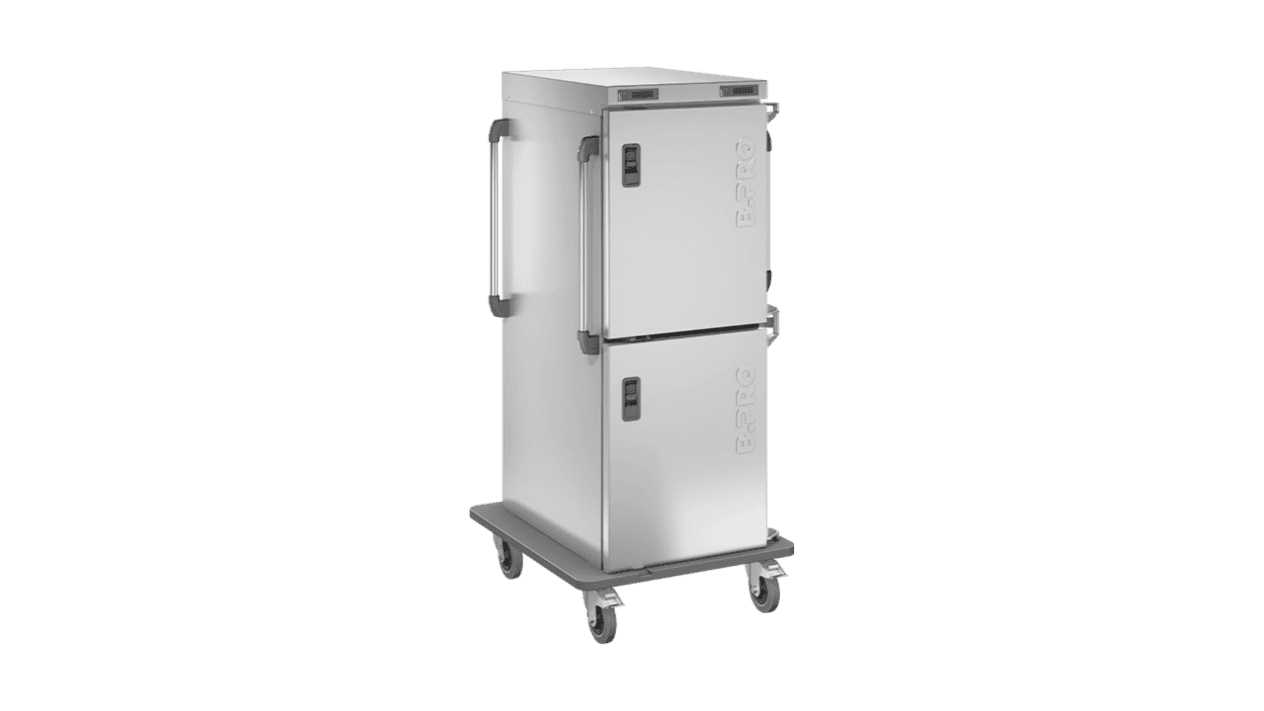

BPT E 2 x 16 (10) combi H/C banquet

Order no. 575217

B.PROTHERM E 2 x 16 (10) x 2/1 combi heated/cooled banquet
B.PROTHERM E food transport container 2/1, convection-heated/convection-
cooled
Made of corrosion-resistant steel, with hinged doors, mobile.upper
compartment: convection-heated,
temperature range adjustable between +30 °C and +95 °C
16 pairs of support ledgeslower compartment: convection-cooled,
temperature range adjustable between +2 °C and +10 °C
16 pairs of support ledges with 10 x 2/1 and 6 x 1/1
Refrigerant: propane R290.
Mains frequency: 50/60 Hz

Basic model: 386622

Attributes Advantages

Back to overview

Attributes

Exterior dimensions width	941 mm
Exterior dimension height	1.795 mm
Exterior dimensions length	820 mm
Exterior dimension unit	MM
Rated voltage	220-240 V
Rated power	1.34 kW
Emissions	The workplace-specific noise level for the unit is less than 70 dB(A)
Weight	170 kg
Heating and cooling technology	Active convection heating / convection cooling
Hygiene type	HS
Insulating material	PUR foam panels, CFC-free
Refrigerant	Propan R290
Capacity	Top cupboard compartment: 8 x GN 2/1-65 lower cupboard compartment: 5 x GN 2/1-65 + 3 x GN 1/1-65
Climate class	4
Mains frequency	50/60 Hz
MatNo. (18 digits)	000000000000575217
Protection type	IPX5
No. of ledges (free text)	<p>Upper compartment:</p> <p>16 pairs of deep-drawn support ledges</p> <p>Right compartment:</p> <p>16 deep-drawn support ledges: 10 x 1/1 and 6 x 1/1 GN</p>
Space between ledges	38,3 mm
Temperature resistance	to
Ambient temperature – operation	15 °C to 38 °C
Ambient temperature – operation from	15 °C
Ambient temperature – operation to	38 °C
Type	Kombimodell
Material(s)	Stainless Steel 1.4301 Polyethylene (PE)
Volume	1.385
Volume unit (capacity)	M3
Heat emission sensitive	593 W

Downloads

Brochures

BPROTHERM_Edelstahl_Broschüre_de-3.pdf 4 MB

BPROTHERM_Edelstahl_Broschüre_en-3.pdf 4 MB

BPROTHERM_Edelstahl_Broschüre_es-3.pdf 4 MB

BPROTHERM_Edelstahl_Broschüre_fr.pdf 4 MB

BPROTHERM_Edelstahl_Broschüre_nl-3.pdf 4 MB

BPROTHERM_Edelstahl_Broschüre_cz.pdf 4 MB

Revit

Advantages

Two thermally separated compartments for different temperature ranges
Extremely efficient, flexible use of interior thanks to uniform space between ledges of 38.3 mm
Deep-drawn stainless steel ledge walls for easy cleaning and maximum hygiene
Sturdy, enclosed, solid, synthetic base structure with integrated all-round bumper rail
Hinged door with door opening of 270°, with lock
Optional connectivity function
