TTW 20-115 DEU

Order no. 575574

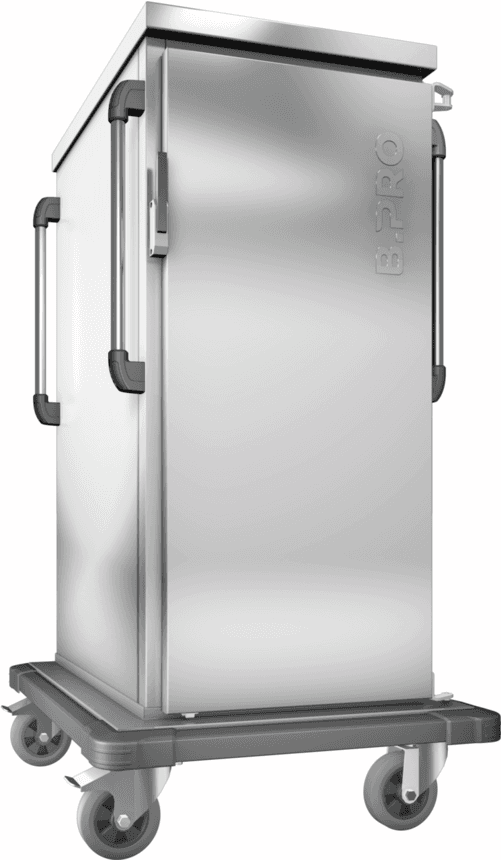

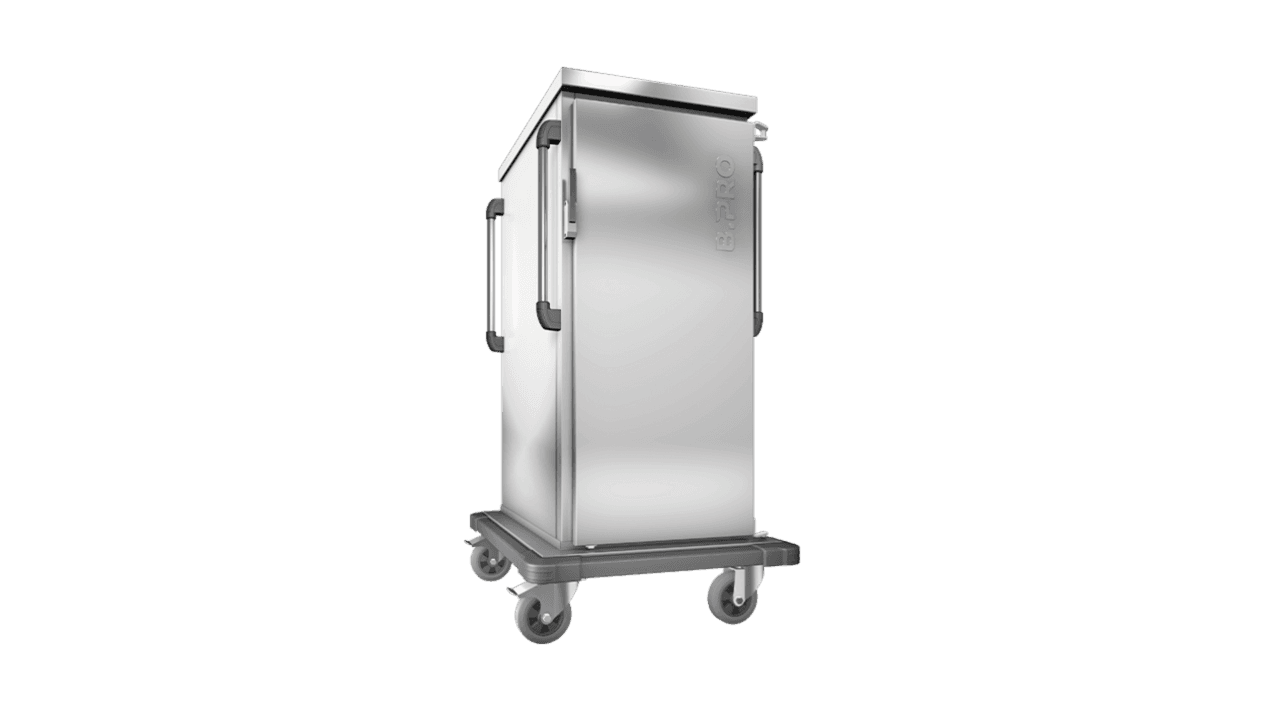

Tray transport trolley, double-walled, insulated
1 compartment

Capacity: 20 Euronorm or Gastronorm trays
insertion: crosswise
Space between ledges: 115 mm
basic model 390240

TTW 20-115 DEU

Attributes Advantages

Back to overview

Attributes

Exterior dimensions width	956 mm
Exterior dimension height	1.595 mm
Exterior dimensions length	870 mm
Exterior dimension unit	MM
Insert	Lengthwise
Weight	97 kg
Hygiene type	HS
Insulating material	Polystyrene hard foam plates (30 mm)
Capacity	20 Euronorm trays (530x370mm) or 20 Gastronorm trays (530x325mm)
MatNo. (18 digits)	000000000000575574
Space between ledges	115 mm
Temperature resistance	to
Ambient temperature – operation	to
Type	double-walled
Material(s)	Stainless Steel 1.4301 Polyethylene (PE)
Volume	1.327

Downloads

Kategorie-Dokumente (Website)

BPRO_Tray_transport_trolleys_EN.pdf (2302 KB)

BPRO_Tabletttransportwagen_DE.pdf (2304 KB)

BPRO_Transportni_voziky_na_podnosy_CS.pdf (2312 KB)

BPRO_Dienbladentransportwagens_NL.pdf (2304 KB)

BPRO_Carrello_per_il_trasporto_di_vassoi_IT.pdf (732 KB)

BPRO_Chariots_de_transport_de_plateaux_FR.pdf (2304 KB)

BPRO_Carros_de_transporte_de_bandejas_ES.pdf (2302 KB)

Advantages

Self-closing door locks with integrated transport security
Doors with removable all-round seal profile
Interior and exterior body are vertically connected with synthetic profiles and thermally separated
